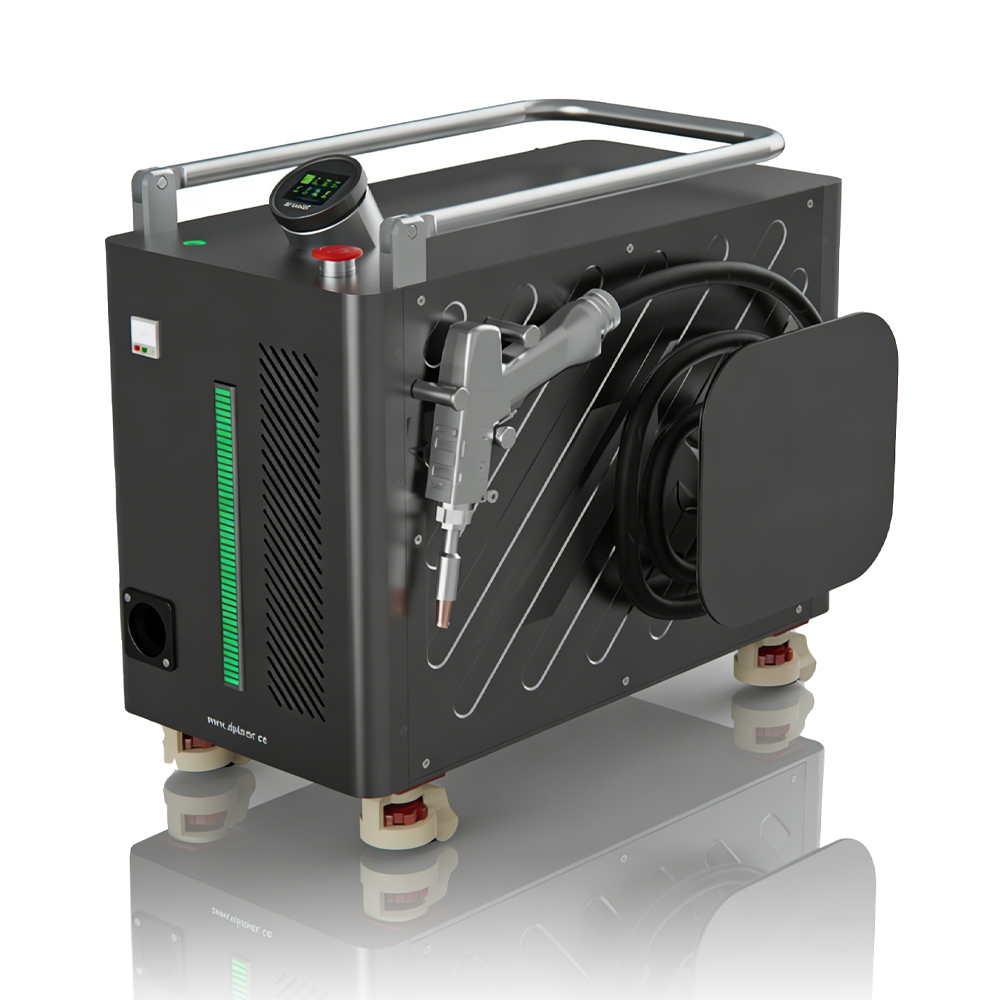

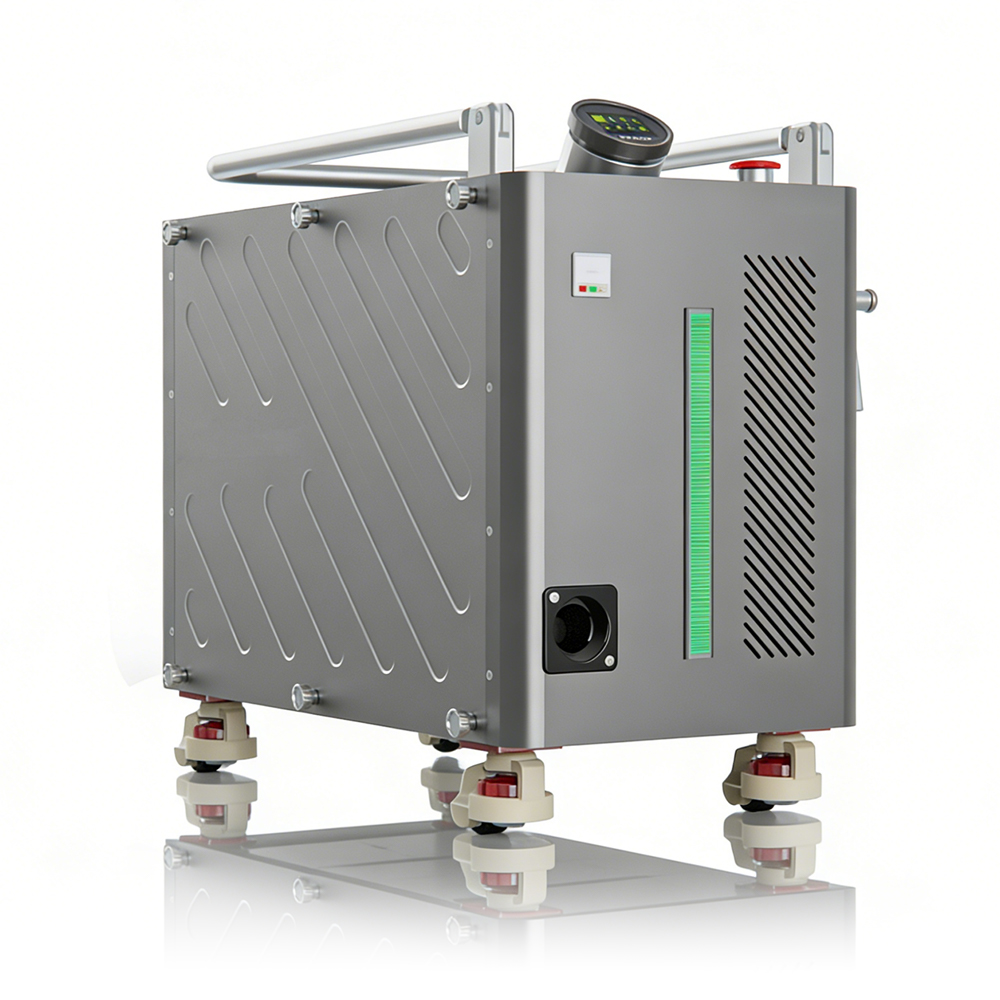

1500W Smart Handheld Laser Welding Machine

This industrial-grade welder delivers 4-10 times the speed of traditional methods, ensuring zero deformation and one-piece molding. Equipped with fingerprint security and APP+screen dual control, it offers unmatched efficiency and ease of use for stainless steel, aluminum, and copper welding.

Model: DR-1500PW

✔Mobile APP Control

✔Fingerprint Security

✔Built-in Wire Feeder

Intelligent control

High-Speed

High-Precision

PRODUCT DETAILS

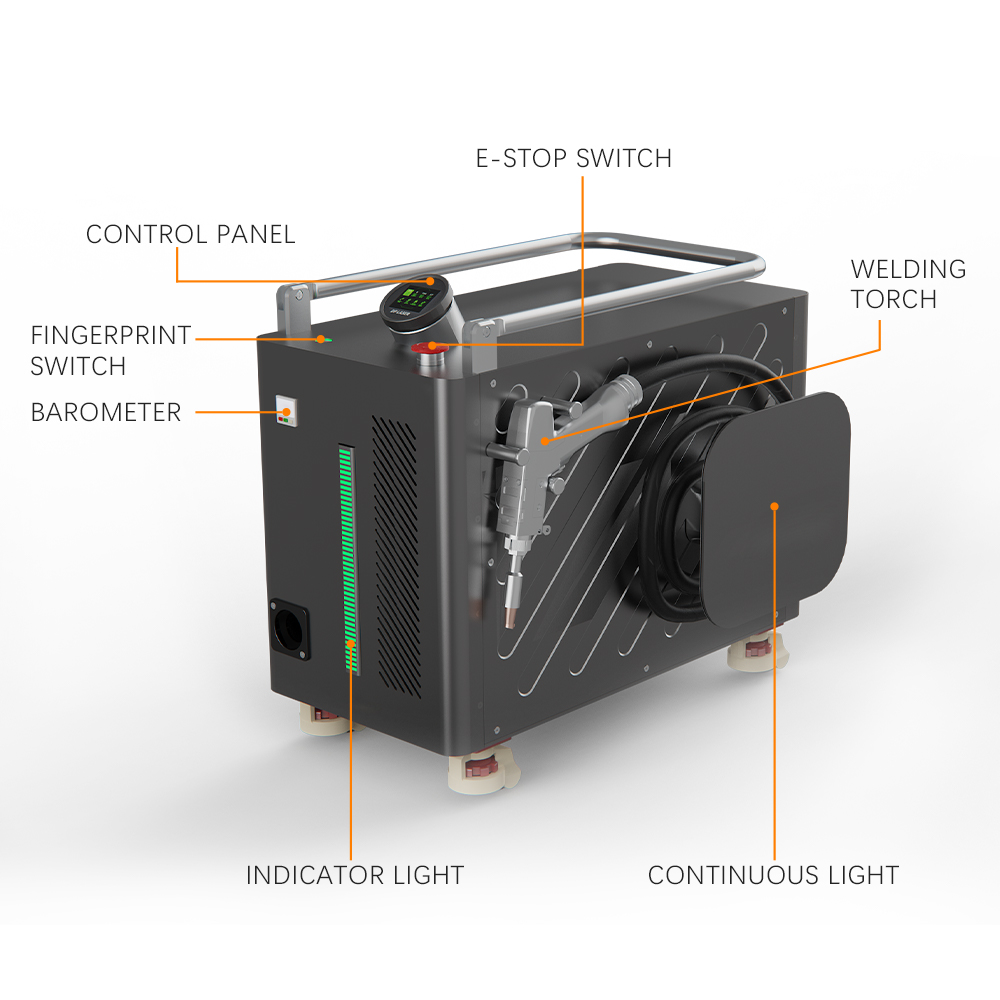

Mobile APP Control

Monitor and adjust welding parameters in real-time via smartphone for ultimate convenience.

Built-in Wire Feeder System

Integrated wire feeding mechanism eliminates the need for bulky external feeders, saving space and cost.

Rotating Smart Touch Screen

Intuitive interface allows for quick parameter setting and real-time status monitoring.

Fingerprint Security Start

High-resolution sensor ensures only authorized personnel can operate the machine, enhancing safety.

Air Cooling System

Efficient air cooling design reduces maintenance complexity and avoids water leakage risks associated with water cooling.

1500W Air Cooled Output

Delivers deep penetration (4mm single side) for robust welding on stainless steel and carbon steel.

0-4mm Adjustable Swing Width

Allows flexible adjustment of the laser beam width to suit different gap sizes and welding needs.

0-300HZ Oscillation Frequency

High-frequency oscillation ensures a uniform melt pool and smooth, deformation-free welds.

High-Reflectivity Capability

Specifically optimized for welding challenging metals like copper, aluminum, and brass.

Compact & Portable Design

Weighing 45KG with dimensions of 60x30x52cm, it is easy to move around the workshop.

Parameter of Equipments

Parameter	Specification
Machine model	DR-1500PW
Laser power supply	1500W
Cooling-down method	Air Cooling
Laser wavelength	1080nm
Rated Power	2500W
Swing Width	0-4mm
Oscillation Frequency	0-300HZ
Wire Feeding	Built-in Wire Feeder
Applicable Materials	Stainless Steel, Aluminum, Iron, Copper, Zinc
Dimensions	60 x 30 x 52 cm
Weight	45KG

Why choose us

Unrivaled Efficiency & Speed

Say goodbye to the slow pace of traditional TIG welding. The DR-1500PW offers a massive 4-10x speed advantage, allowing you to complete projects in a fraction of the time. This drastic reduction in production time means you can take on more orders and increase your overall throughput without increasing labor hours. – View More

Future-Proof Smart Technology

We have integrated cutting-edge technology to make welding safer and easier. The combination of Mobile APP control, a rotating smart screen, and a secure fingerprint start sets a new industry standard. This user-friendly interface ensures that even operators with minimal experience can achieve professional results, reducing training costs and operational errors.– View More

Superior Material Versatility

Unlike standard welders that struggle with conductive metals, the DR-1500PW is specifically engineered to handle high-reflectivity materials. Whether you are working with copper, aluminum, brass, or stainless steel, our laser technology ensures a consistent, high-strength bond without the burn-back or porosity issues common in traditional welding. – View More

Total Cost Leadership

While the initial investment is higher than a standard arc welder, the DR-1500PW is the most economical choice in the long run. By consuming 80-90% less energy and eliminating the need for consumables like shielding gas and filler rods (thanks to the precision laser), your operational costs will plummet. Plus, the low maintenance requirement means less downtime and more profit.– View More
