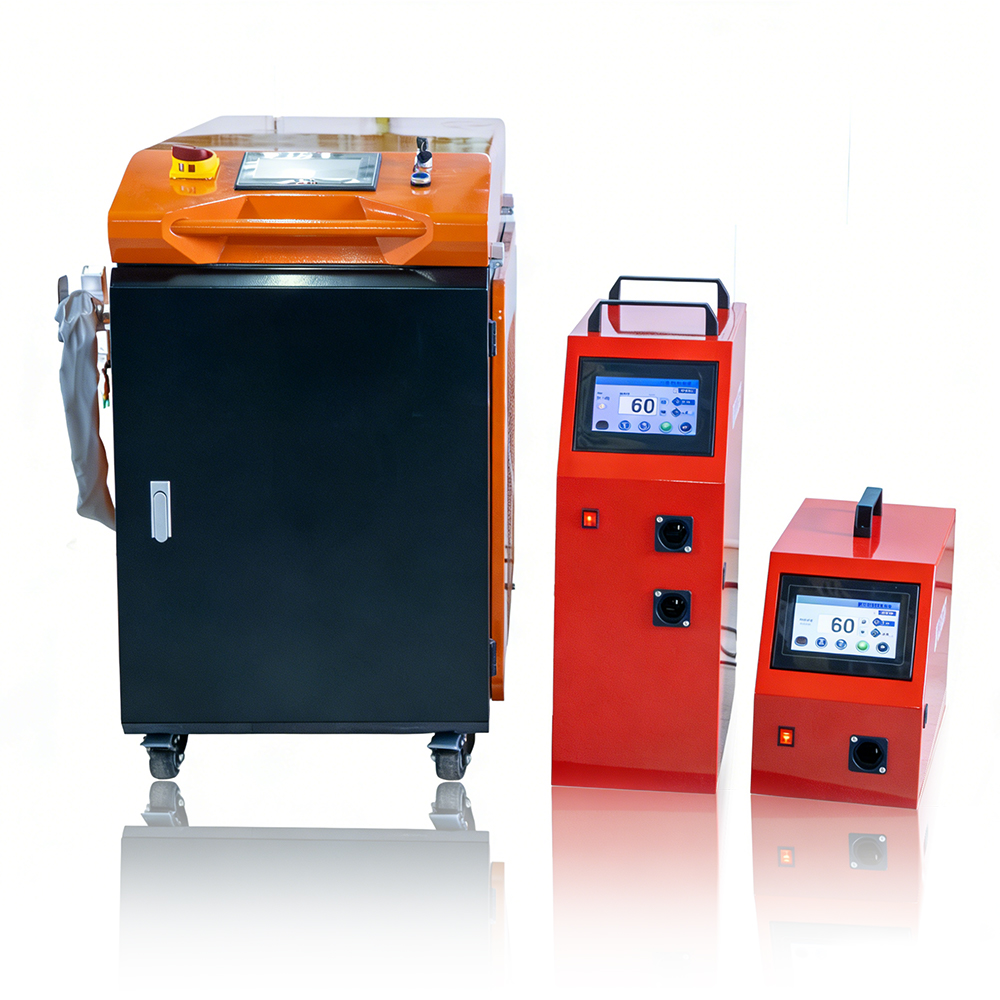

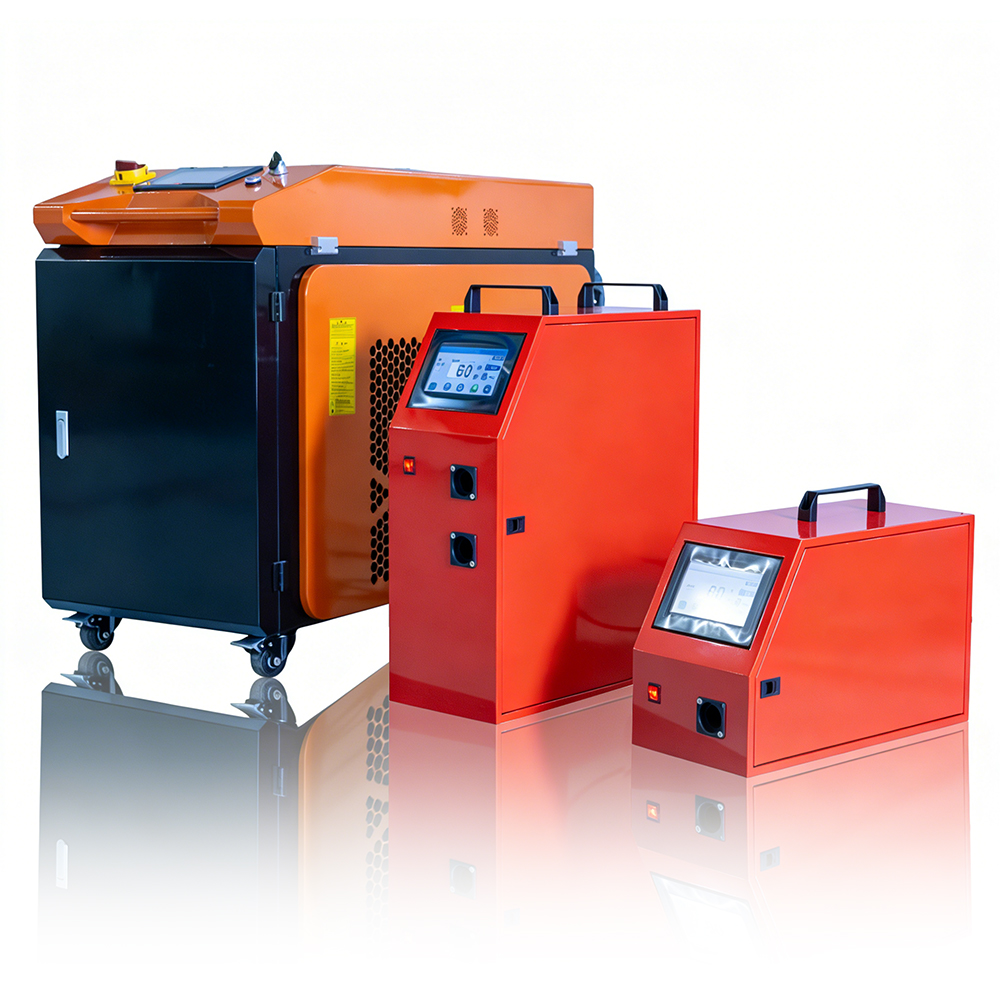

1500W/2000W/3000W 4-in-1 Handheld Fiber Laser Welder

The WORLDRAY 4-in-1 Handheld Fiber Laser Welder integrates welding, cutting, cleaning, and seam processing in one industrial-grade system. With 1500W/2000W/3000W power options, 0.5–6mm material compatibility, 7-inch multilingual touchscreen, red light positioning, and dual-temperature water cooling, it delivers precision, efficiency, and reliability across metal fabrication, automotive, appliance, construction, and hardware industries.

Model: DR-1500CW

✔4-in-1 Function

✔Smart Control

✔Industrial Stability

Intelligent control

High-Speed

High-Precision

PRODUCT DETAILS

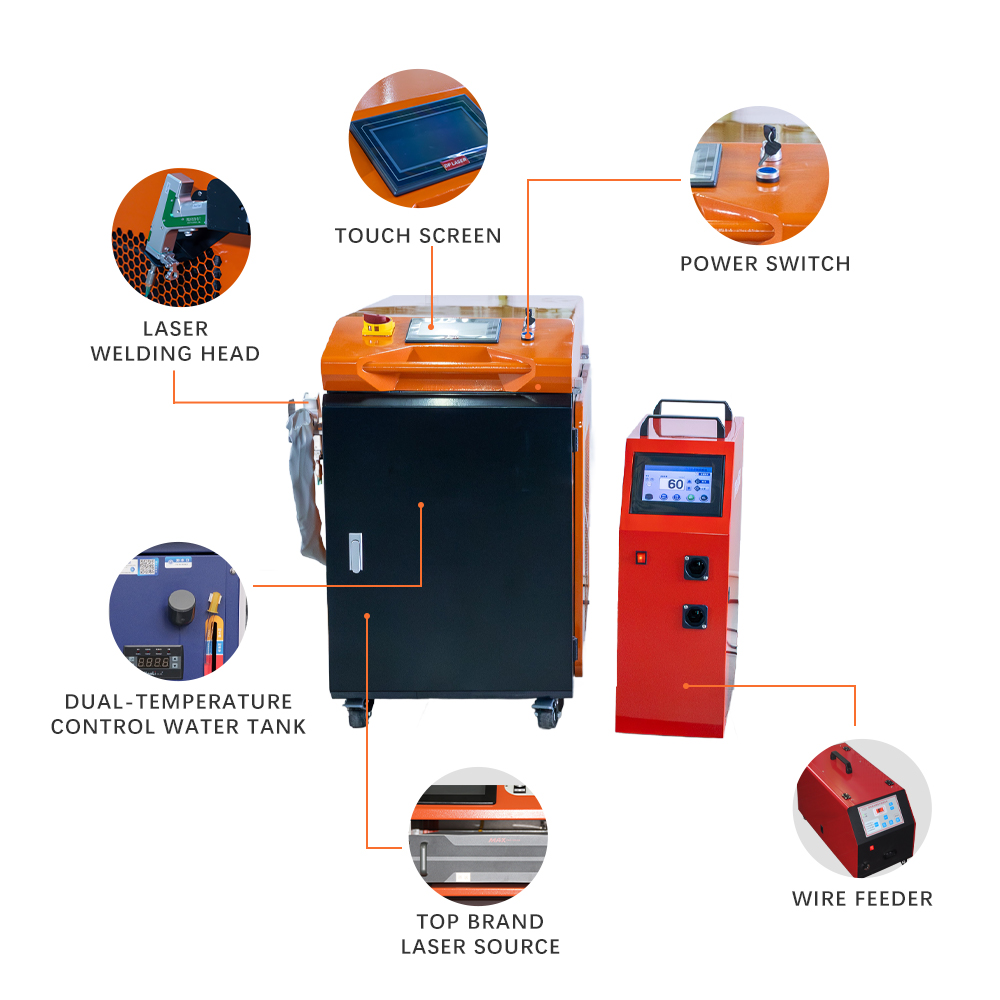

4-in-1 Multi-function Integration

One device integrates welding, cutting, cleaning, and seam processing, saving equipment cost and space.

Multiple Power Options

1500W/2000W/3000W power options to meet different processing requirements.

Wide Material Compatibility

Supports 0.5-6mm metal thickness, covering thin to medium-thick plates for most industrial applications.

Single/Double Wire Feeder Optional

Support single or dual wire feeder configuration, meet different welding process requirements

Industrial-grade Safety Certification

CE certified, meeting international safety standards for operator and equipment protection.

Intelligent Touchscreen Interface

7-inch multilingual touchscreen with preset material parameters for one-click access, reducing learning curve.

Flexible Fiber Length Options

Standard 10m fiber, customizable up to 15m, suitable for long-distance and complex spatial operations.

Multiple Welding Joint Types Supported

Butt, corner, lap, pipe welding, etc., adaptable to complex conditions

Modular Structural Design

Modular core components for easy assembly, maintenance, and replacement, reducing downtime.

Comprehensive After-sales Support

12-month warranty, lifetime technical support, and 24-hour response

Parameter of Equipments

Parameter	Specification
Machine model	DR-1500CW
Laser power supply	1500W / 2000W / 3000W (Optional)
Cooling-down method	Water Cooling
Laser wavelength	1080nm
Welding Thickness	0.5-6mm
Welding Speed	0-120mm/s
Fiber Length	10m (Standard), 15m (Optional)
Wire Feeding	With Wire Feeder
Applicable Materials	Stainless Steel, Aluminum, Iron, Copper, Zinc
Dimensions	1390mm × 520mm × 1020mm
Weight	180KG
Certification	CE Certified
