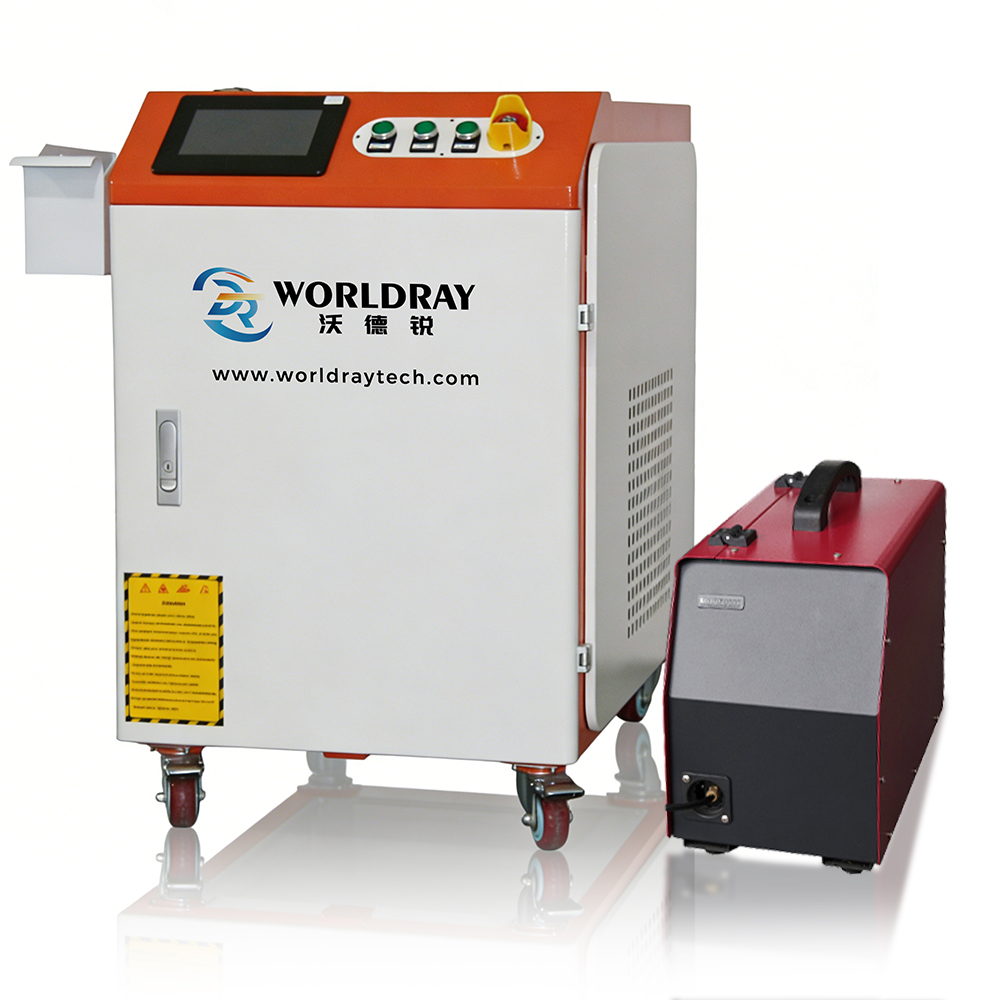

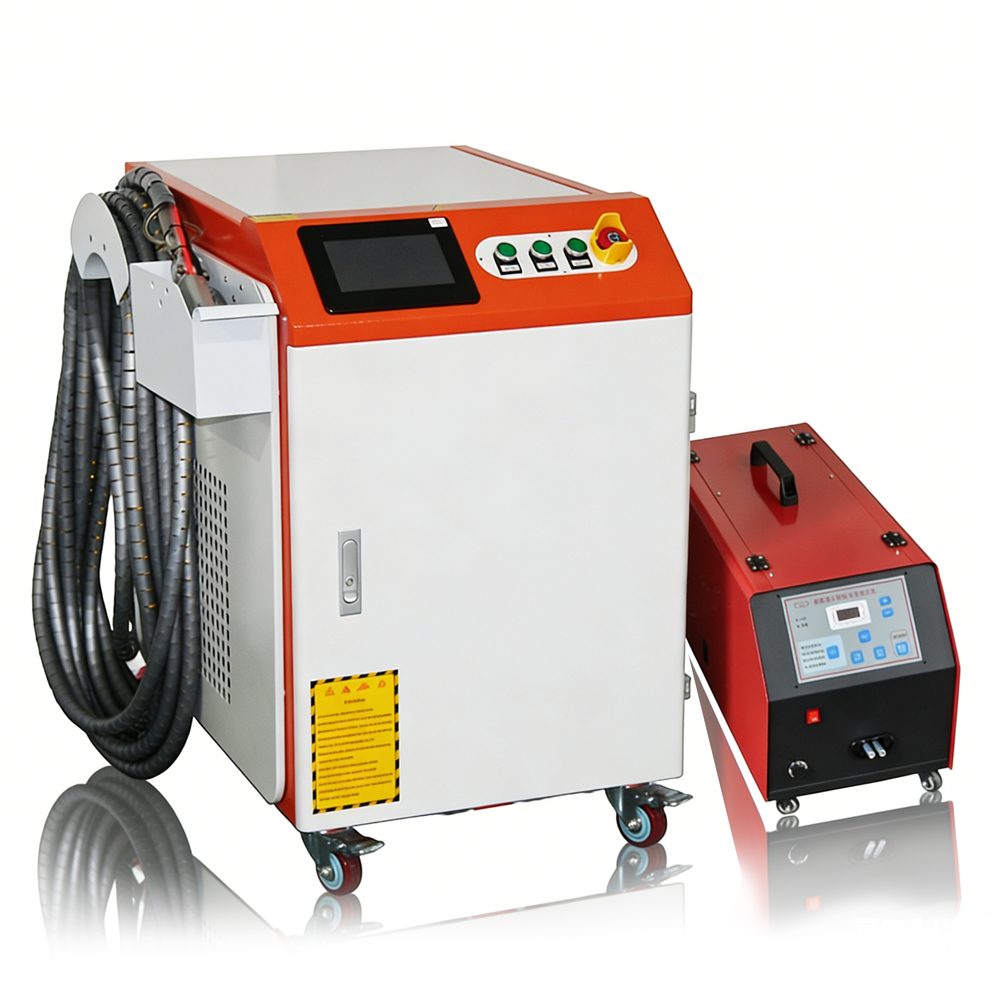

1500W/2000W/3000W 4-in-1 Handheld Fiber Laser Welder

DR-HS1500W is an industrial-grade 4-in-1 handheld fiber laser workstation integrating welding, cutting, surface cleaning, and weld cleaning. Available in 1500W/2000W/3000W power configurations, featuring fiber laser source, independent wire feeder, and intelligent water cooling system. 7-inch touchscreen supports multi-language operation with pre-stored parameter library for one-click access. Supports various welding joint types, compatible with stainless steel, carbon steel, aluminum alloy, and more. Standard equipped with SUP-21T and SUP-23T professional welding torches to meet different grip habits and workspace requirements.

Model: DR-HS1500W

✔4-in-1 Function

✔Smart Control

✔Industrial Stability

Intelligent control

High-Speed

High-Precision

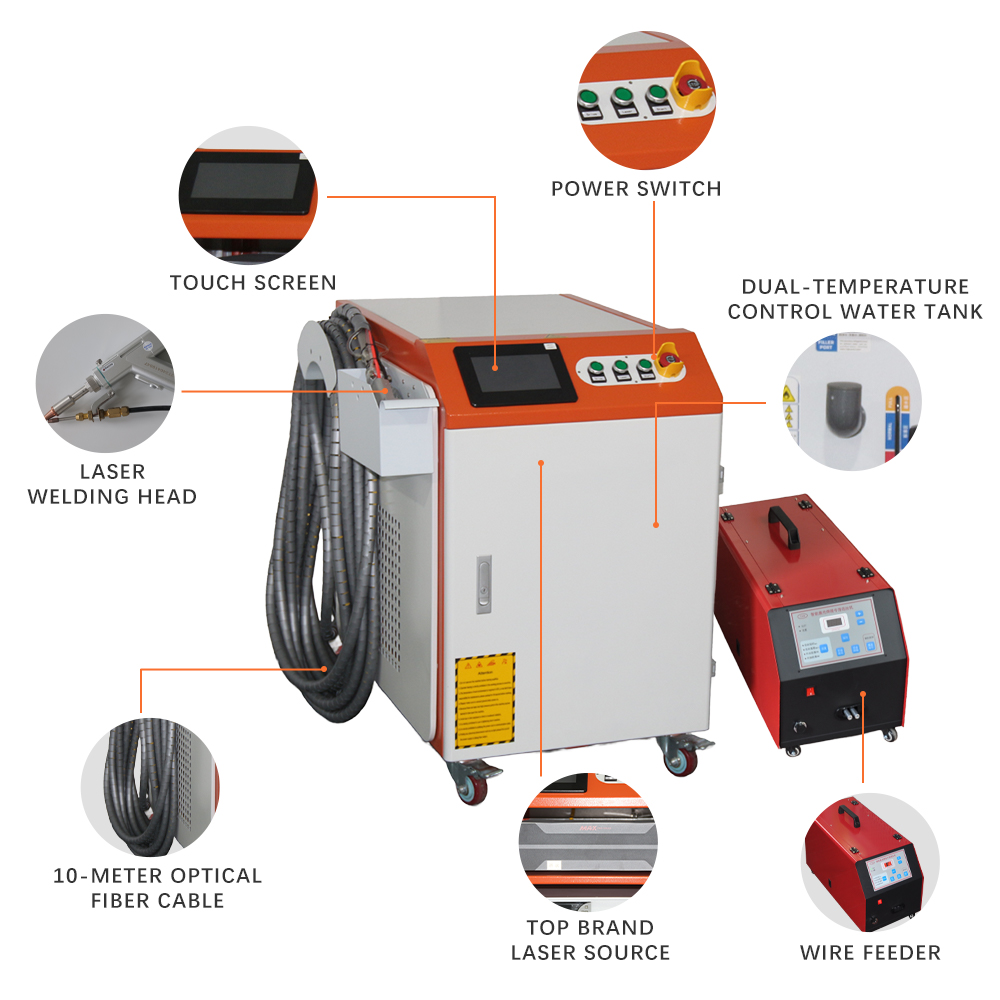

PRODUCT DETAILS

4-in-1 Multi-function Integration

One device completes welding, cutting, surface cleaning, and weld cleaning, replacing multiple specialized machines.

Wide Material Compatibility

Supports 0.5-6mm metal thickness, covering thin to medium-thick plates for most industrial applications.

Multi-metal Material Compatibility

Can process various metal materials including stainless steel, carbon steel, aluminum alloy

Multiple Welding Joint Types Supported

Butt, corner, lap, pipe welding, etc., adaptable to complex conditions.

CE International Safety Certification

Complies with EU safety standards, worry-free global export.

Multiple Power Options

1500W/2000W/3000W power options to meet different processing requirements.

Flexible Fiber Length Options

Standard 10m fiber, customizable up to 15m, suitable for long-distance and complex spatial operations.

7-inch Touchscreen Operation Panel

Touchscreen + multi-language support, pre-stored process parameter library, one-click access.

Modular Structural Design

Modular core components for easy assembly, maintenance, and replacement, reducing downtime.

Comprehensive After-sales Support

12-month warranty, lifetime technical support, and 24-hour response

Parameter of Equipments

Parameter	Specification
Machine model	DR-HS1500W
Laser power supply	1500W / 2000W / 3000W (Optional)
Cooling-down method	Water Cooling
Laser wavelength	1080nm
Welding Thickness	0.5-6mm
Welding Speed	0-120mm/s
Fiber Length	10m (Standard), 15m (Optional)
Wire Feeding	0.8-2.0mm wire diameter
Applicable Materials	Stainless Steel, Aluminum, Iron, Copper, Zinc
Dimensions	950mm × 660mm × 1360mm
Weight	180KG
Certification	CE Certified
