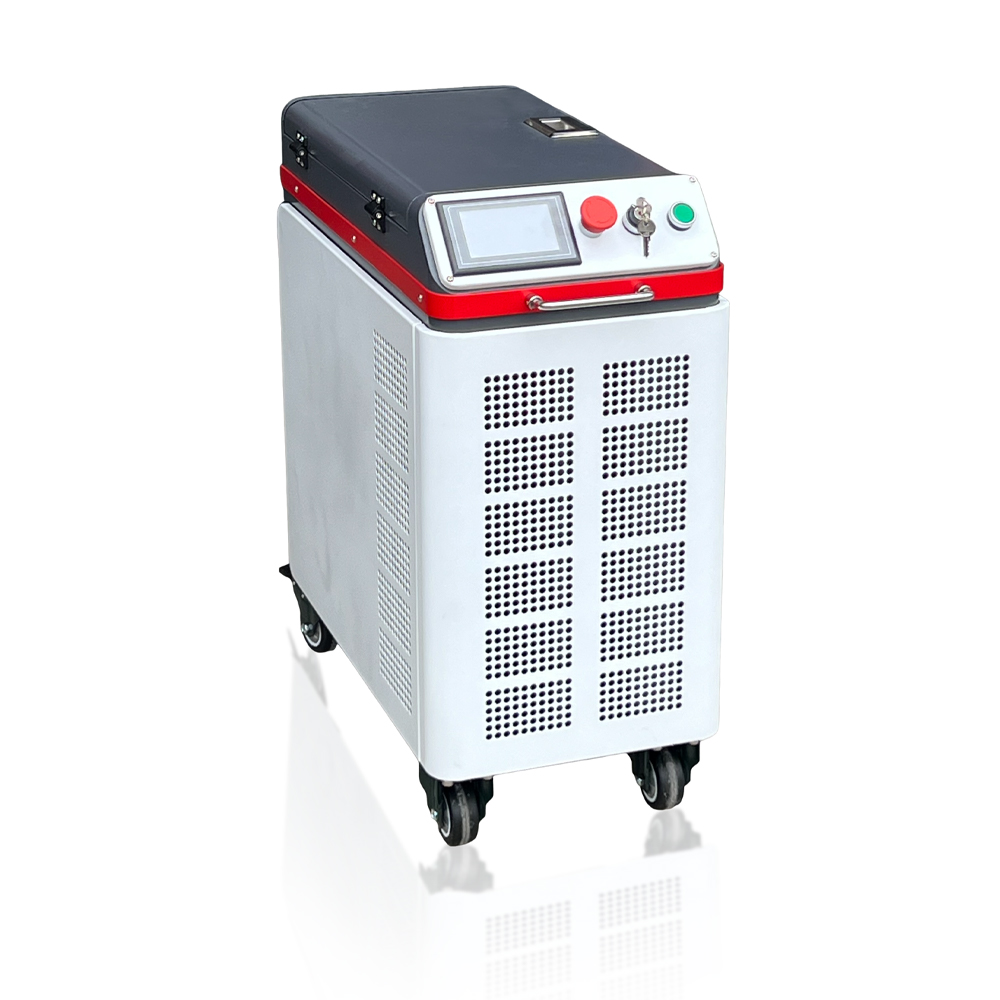

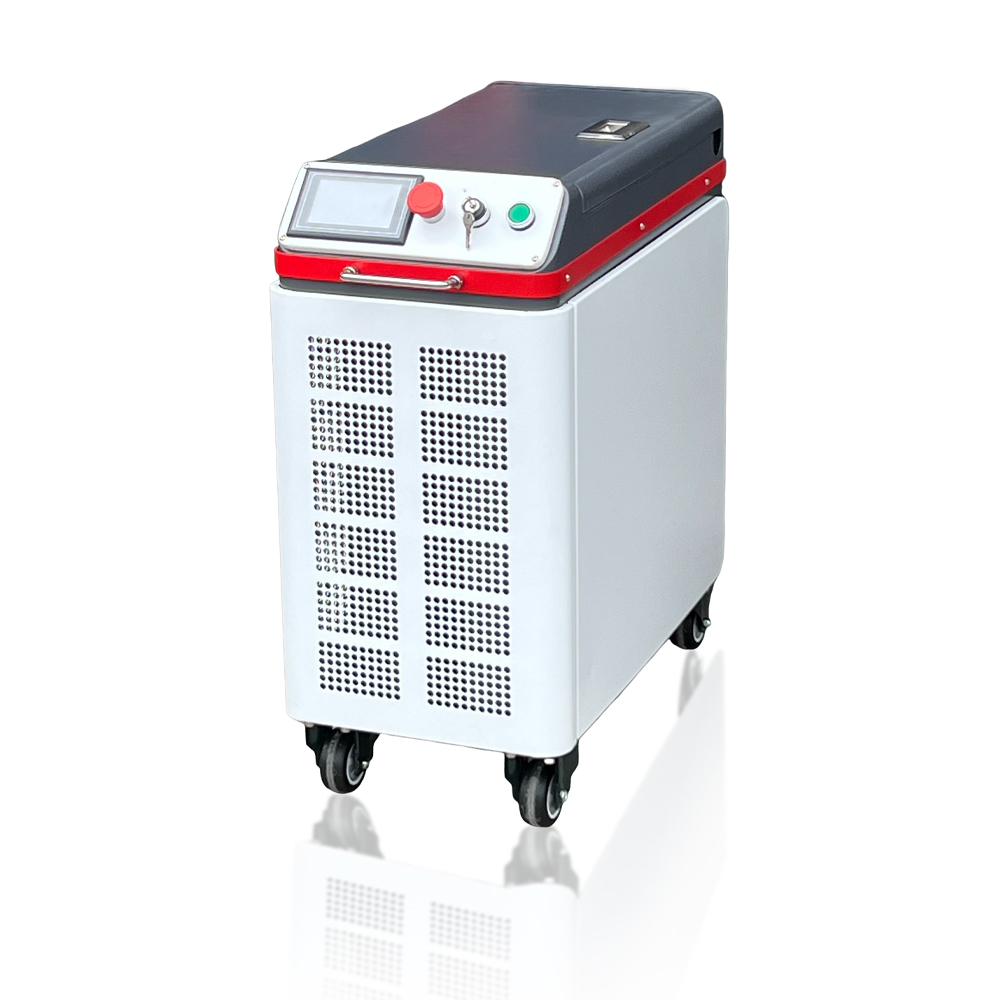

50W-2000W Cabinet Pulsed Laser Cleaning Machine

An all-in-one industrial cleaning solution powered by JPT pulsed laser & gun-mounted touchscreen, supporting 9 scanning modes. Features integrated storage, multi-language UI, silent mobility (52kg), 12-month warranty + lifetime tech support.

Model: DR-FLC500S

✓ Native UI
✓ Pulsed Precision
✓ Versatile Cleaning

Non-Destructive

High-Precision

Planet-Friendly

PRODUCT DETAILS

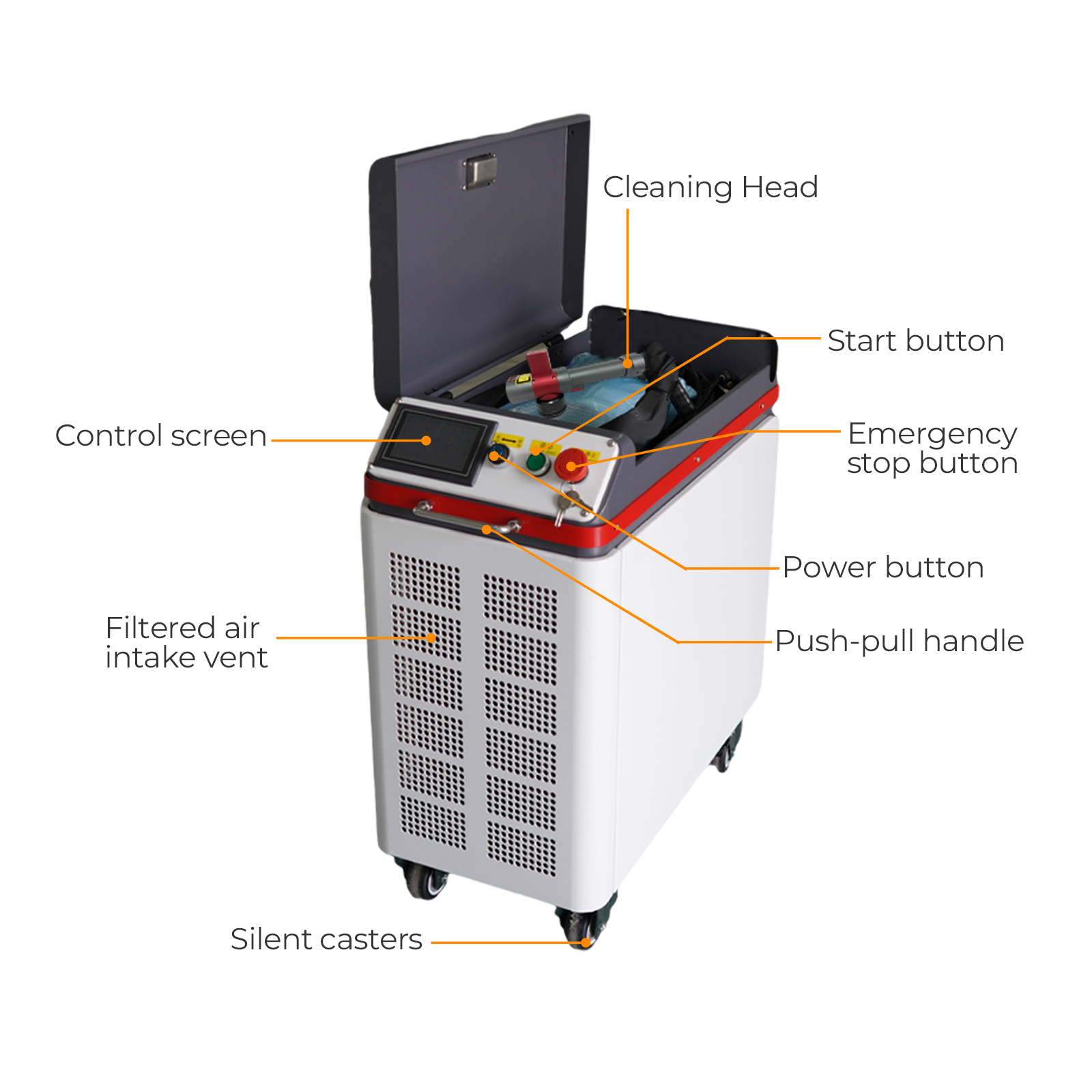

Laser-Head with Touchscreen

HD touchscreen on handle allows real-time parameter adjustment on-site, eliminating walks to the main unit and boosting efficiency.

Top Storage Compartment

Innovative dust-proof top compartment stores gun head and goggles, keeping the site tidy and ensuring accessories are always ready.

JPT Pulsed Source

Powered by JPT pulsed laser (15mJ energy) to instantly vaporize dirt while controlling heat input, protecting sensitive substrates.

Air-Cooled, No Consumables

Air-cooled system needs no coolant, ruling out leaks and maintenance costs; chemical-free cleaning is CE certified and eco-friendly.

12-Month Full Warranty

12-month full warranty covers free repair/replacement of core components for non-human damage.

15+ Languages

Pre-loaded with 15+ industrial languages; one-click switch to native interface eliminates barriers and enables true "plug-and-play."

9 Scanning Modes

Offers 9 preset scanning modes for rust removal and paint stripping, adapting to various tasks without hardware changes.

Intelligent Distance Sensing

Real-time distance monitoring alerts if out of focus, ensuring consistent spot focus and preventing substrate damage by novices.

Versatile Material Adaptability

From delicate aluminum/copper (low wattage) to heavy rusted steel (high wattage), one series covers all.

Lifetime Tech Support

Lifetime support includes remote video troubleshooting by experts, ensuring rapid response and stable equipment operation anytime.

Parameter of Equipments

Parameter	Specification
Laser Type	Pulsed Fiber Laser
Laser Power	50W/100W / 200W / 300W / 500W/1000W/1500W/2000W(Optional)
Pulse Energy	1.5mj/5mj/10mj/15mj/50mj
Cleaning Width	0 - 145 mm (Continuously adjustable)
Max Cleaning Speed	0 - 120 m²/h (Depends on rust severity & power)
Cooling System	Air Cooling
Scanning Patterns	Dual-axis supports 9 patterns
Field Lens	210mm (Standard) (Optional: 160mm / 254mm / 330mm / 420mm)
Cleaning Head Weight	< 1.4 kg
Overall Dimensions (L×W×H)	629mm × 341mm × 734mm（300W）
Packaged Dimensions (L×W×H)	740mm × 430mm × 890mm（300W）
Net Weight	Approx. 52KG（300W）
Gross Weight	Approx. 67KG（300W）

Why choose us

Customized Process Solutions

We don’t just sell machines; we solve cleaning problems. Before purchase, we could conduct sample tests on your specific workpieces to determine the optimal laser parameters (power, frequency, pulse width) for maximum efficiency and zero substrate damage.– View More

Automation Integration

Whether you need a simple handheld unit or a complex robotic cleaning cell, our engineering team can integrate the laser system into your existing production line. We provide customized fixtures, conveyor systems, and safety enclosures tailored to your factory layout.– View More

Precise & Non-Damaging Cleaning

With power fluctuation under 5%, cleaning is always uniform; 30-500ns pulse technology enables “cold cleaning,” removing dirt without damaging the base. Paired with 9 scanning patterns, the beam optimizes for any surface texture to guarantee the best results.– View More

End-to-End Technical Support

From remote installation guidance to lifetime software updates and 24/7 engineer support — we’re with you every step of the way.– View More
