100W-500W Trolley-Style Pulsed Laser Cleaning Machine

This 100W-500W pulsed laser cleaning machine features a compact trolley design for easy on-site mobility. It delivers precise “cold cleaning” to effectively remove rust, weld discoloration, and mold residue without damaging the base material, offering an eco-friendly, consumable-free solution for diverse industrial tasks.

Model: DR-FLC500SL

✓ Pulsed Precision
✓ Trolley Portable
✓ Versatile Cleaning

Portable

High-Precision

Planet-Friendly

PRODUCT DETAILS

Scalable Power Options (100W-500W)

Choose from 4 power levels to perfectly match material thickness and cleaning speed requirements.

Portable & Lightweight Design

All models share a compact footprint; net weight starts from approx. 32kg, handheld head <1.4kg.

Air-Cooled & Low Maintenance

Water-free cooling system simplifies operation and reduces maintenance costs for all models.

Complete Ready-to-Use Kit

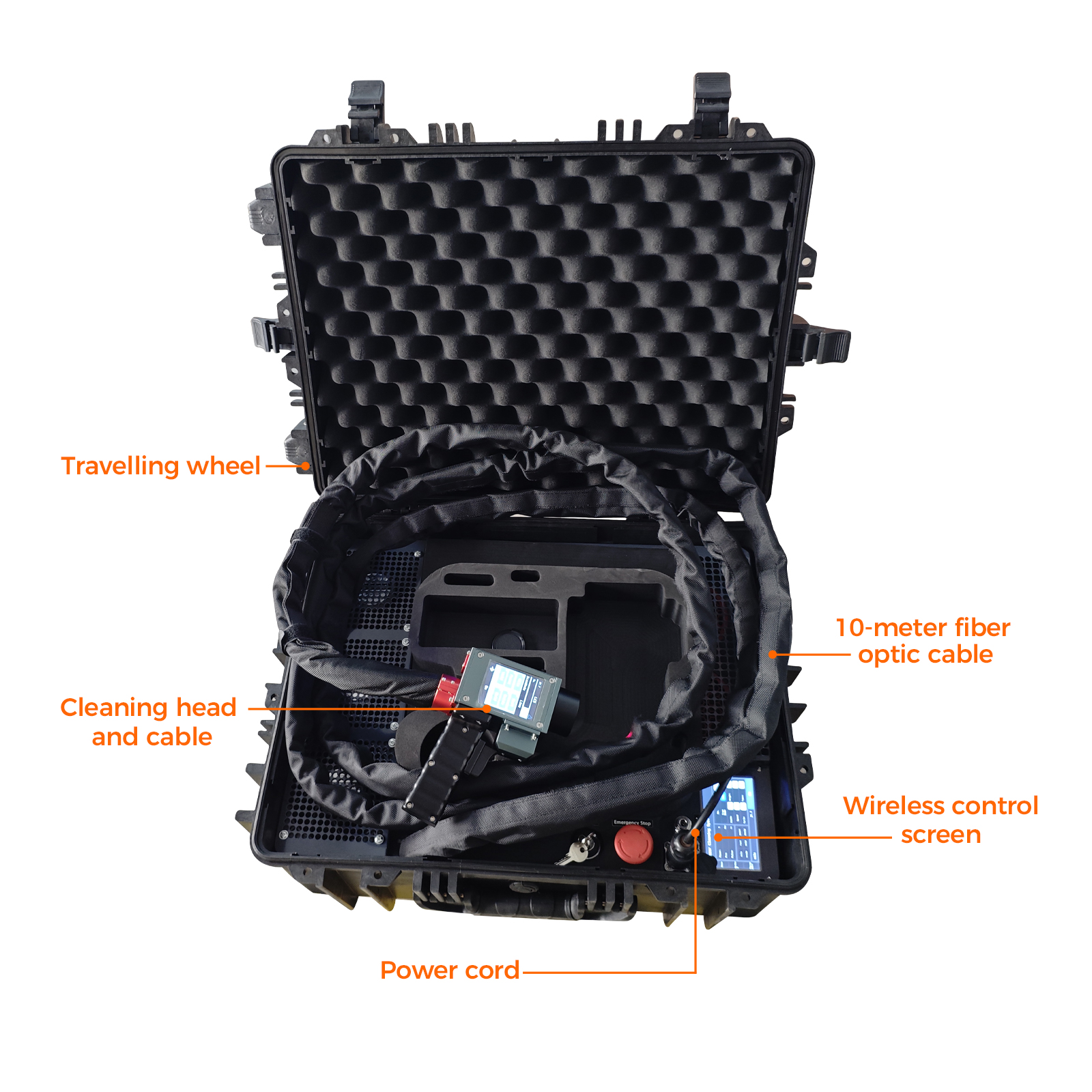

Includes safety goggles, protective lens caps, and rugged transport case for immediate deployment.

Non-Destructive & Eco-Friendly

No chemicals or wear to materials — safe, clean, and green.

Dual-Screen Intelligent Control

Real-time monitoring and parameter adjustment via touchscreen + wireless remote on all power versions.

9 Scanning Patterns

Adjustable scanning width (0-145mm) and modes allow fine-tuning for both small details and large surfaces.

Global Multi-Language Interface

Built-in support for 15+ languages makes operation easy for international teams regardless of model.

Versatile Material Adaptability

From delicate aluminum/copper (low wattage) to heavy rusted steel (high wattage), one series covers all.

Advanced Pulse Technology

Narrow pulse width (30-500ns) ensures cold cleaning with minimal heat affect zone (HAZ) across all powers.

Parameter of Equipments

Parameter	Specification
Laser Type	Pulsed Fiber Laser
Laser Power	100W / 200W / 300W / 500W (Optional)
Pulse Energy	1.5-15mj
Cleaning Width	0 - 145 mm (Continuously adjustable)
Max Cleaning Speed	0 - 70 m²/h (Depends on rust severity & power)
Cooling System	Air Cooling
Scanning Patterns	Dual-axis supports 9 patterns
Field Lens	Standard: 254 mm (Optional: 160mm / 210mm / 330mm / 420mm)
Cleaning Head Weight	< 1.4 kg
Overall Dimensions (L×W×H)	Approx. 617 × 469 × 291 mm
Packaged Dimensions (L×W×H)	Approx. 760 × 560 × 480 mm
Net Weight	Approx. 32 kg
Gross Weight	Approx. 52 kg

Why choose us

Versatile Adaptability

With a frequency adjustable from 1 kHz to 4000 kHz and power from 0-100%, you can fine-tune the settings for sensitive mold cleaning or switch to high-energy mode (up to 15mJ single pulse energy) for stripping thick industrial rust and paint. One machine adapts to all your varying job site requirements.– View More

Ultimate Portability

Built for mobility, the main unit weighs only 32 kg for easy transport, while the handheld gun is just 1.4 kg to reduce operator fatigue. This compact design allows you to take the equipment to any site for efficient mobile cleaning.– View More

Precise & Non-Damaging Cleaning

With power fluctuation under 5%, cleaning is always uniform; 30-500ns pulse technology enables “cold cleaning,” removing dirt without damaging the base. Paired with 9 scanning patterns, the beam optimizes for any surface texture to guarantee the best results.– View More

End-to-End Technical Support

From remote installation guidance to lifetime software updates and 24/7 engineer support — we’re with you every step of the way.– View More
