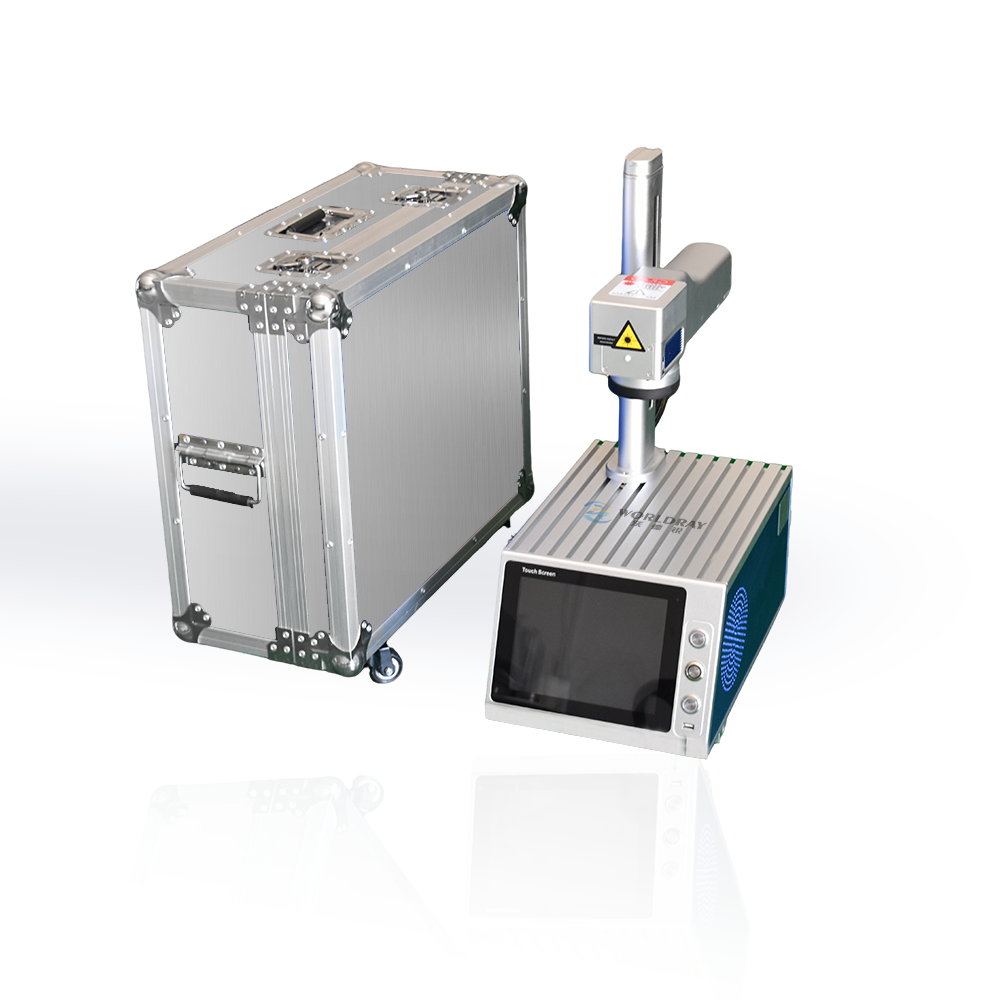

Portable Desktop Fiber Laser Marking Machine With Customized Customized Aluminum Luggage
Compact, powerful, and mobile, this fiber laser marker offers precision marking with a touchscreen interface, adjustable working area, and convenient suitcase-style design for seamless transport and versatile applications.
Model: DR-LM20
✔Customized Aluminum Luggage
✔Touch Screen Design
✔Compact and Portable
Portable and Lightweight
Easy to Transport
User Friendly
PRODUCT DETAILS
【Variable Output Power】
Provides 20W or 30W options for precision marking across a wide range of materials and applications.
【High Beam Quality】
Achieves ≤1.4 M² beam quality for sharp, crisp marking and crisp details across intricate patterns.
【Ultra-High Speed Marking】
Operates at speeds ≤100,000mm/s, making it ideal for high-volume, time-sensitive production environments.
【Adjustable Marking Area】
Supports 11×11cm, 15×15cm, and 20×20cm sizes for versatile marking across varying part dimensions and requirements.
【Excellent Precision】
Enables repeatability of ±0.002mm, ensuring the highest precision for tiny text and complex designs.
【Flexible Marking Depth】
Supports adjustable depth based on material, making it ideal for surface marking, deep engraving, and texturing applications.
【Compact & Portable】
At 70×30×45cm, it fits into a custom suitcase design for convenient transportation between worksites and easy mobile setup.

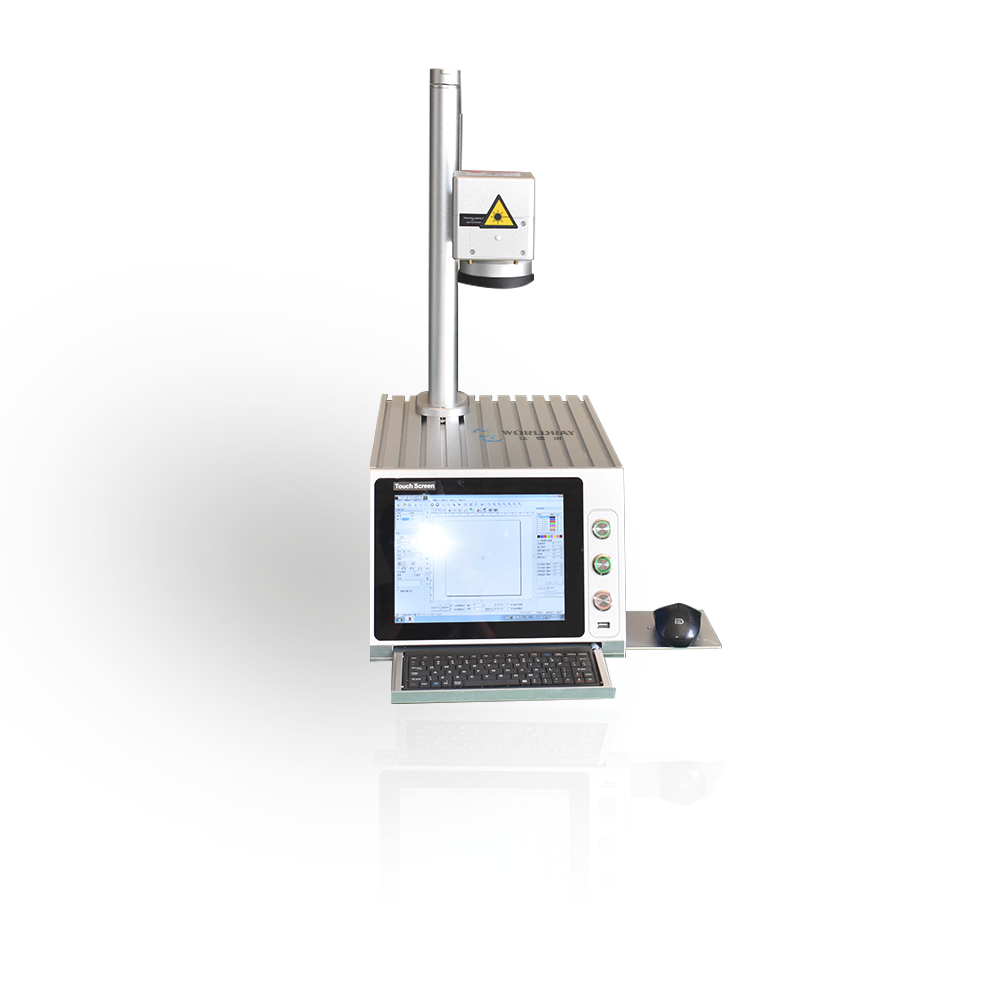

【User-Friendly Touchscreen】
Features a responsive touchscreen interface for seamless operation and quick parameter adjustments, ideal for novice and experienced operators alike.
【Robust Build Quality】
Operates reliably for approximately 10,000 working hours, making it ideal for long-term, heavy-duty industrial marking.
【Wide Environmental Compatibility】
Operates in temperatures from 0–40℃ and humidity of 30–85% RH, making it suitable for varied production environments and challenging conditions.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Laser Power |
20W 30W |
|
Laser type |
Fiber Laser |
|
Source Brand |
Max Laser |
|
Laser Wavelength |
1064nm |
|
Power Adjustment |
0--100% |
|
Pulse Repetition Frequency |
30-60HZ |
|
Beam Quality |
≤1.4 M2 |
|
Service Life |
About 10000 working hours |
|
Marking depth |
0.015-0.5mm |
|
Repeat accuracy |
≤0.001mm |
|
Engraving Line Speed |
≤100000mm/s |
|
The marking focal length |
F=150mm |
|
Scope of marking |
150*150mm (optional) |
|
Whole Machine Power |
≤500W |
|
Noise |
≤60db |
|
Cooling Mode |
Air Cooling |
|
Supported Formats |
PLT. DXF. BMP |
|
Power required |
AC220V±10% /50Hz |
|
Machine size and weight |
70*30*45cm, 37KG |
|
Packaging Dimensions |
50*50*45cm, 42KG |
Why choose us
Environmentally Friendly Design
This marking machine adopts a sealed design, which can significantly reduce the noise in the working environment and reduce the dust during the marking process, making it more environmentally friendly.– View More
Multilingual Software
The software supports 13 languages, including English, French, Spanish, German, Chinese, and Russian, catering to international users.– View More
Customization Options
We offer customization options for lens focal length and marking area to meet specific application requirements. – View More
Technical Support
We provide comprehensive technical support and after-sales service to assist you with any queries or issues you may encounter.– View More
