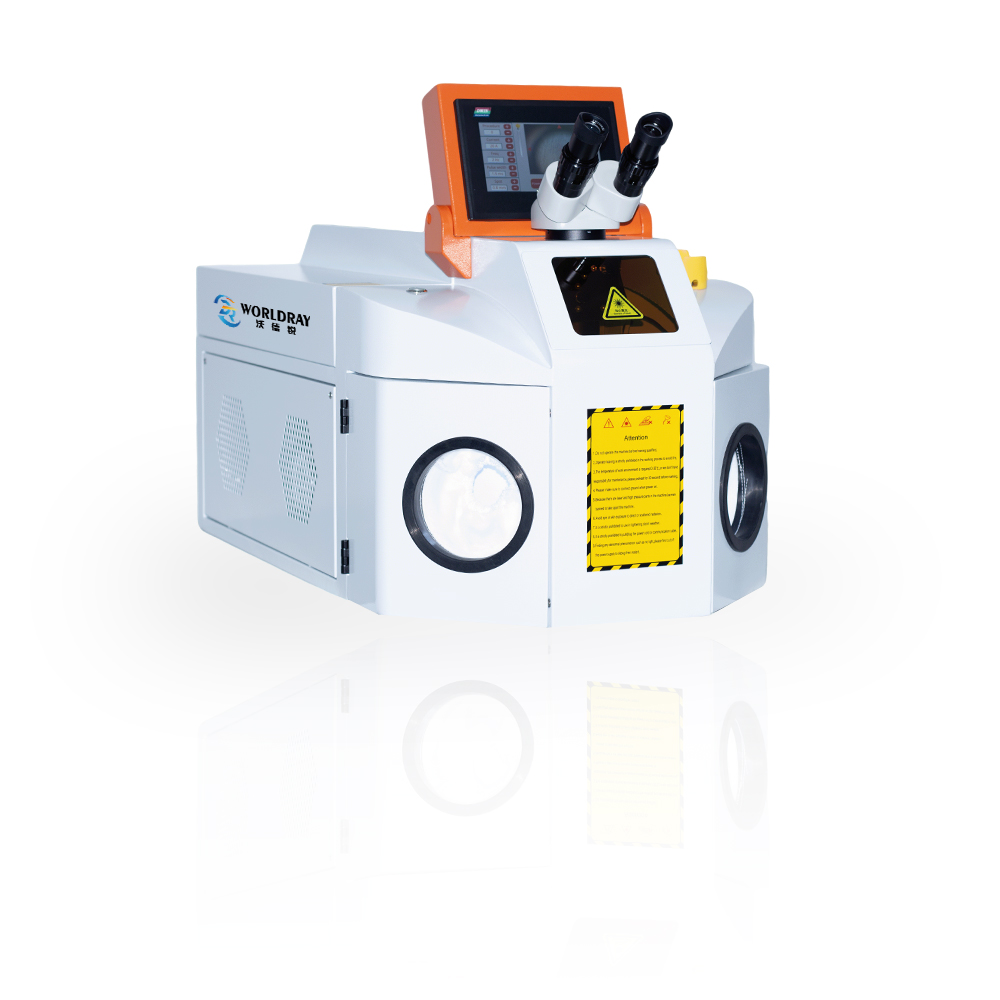

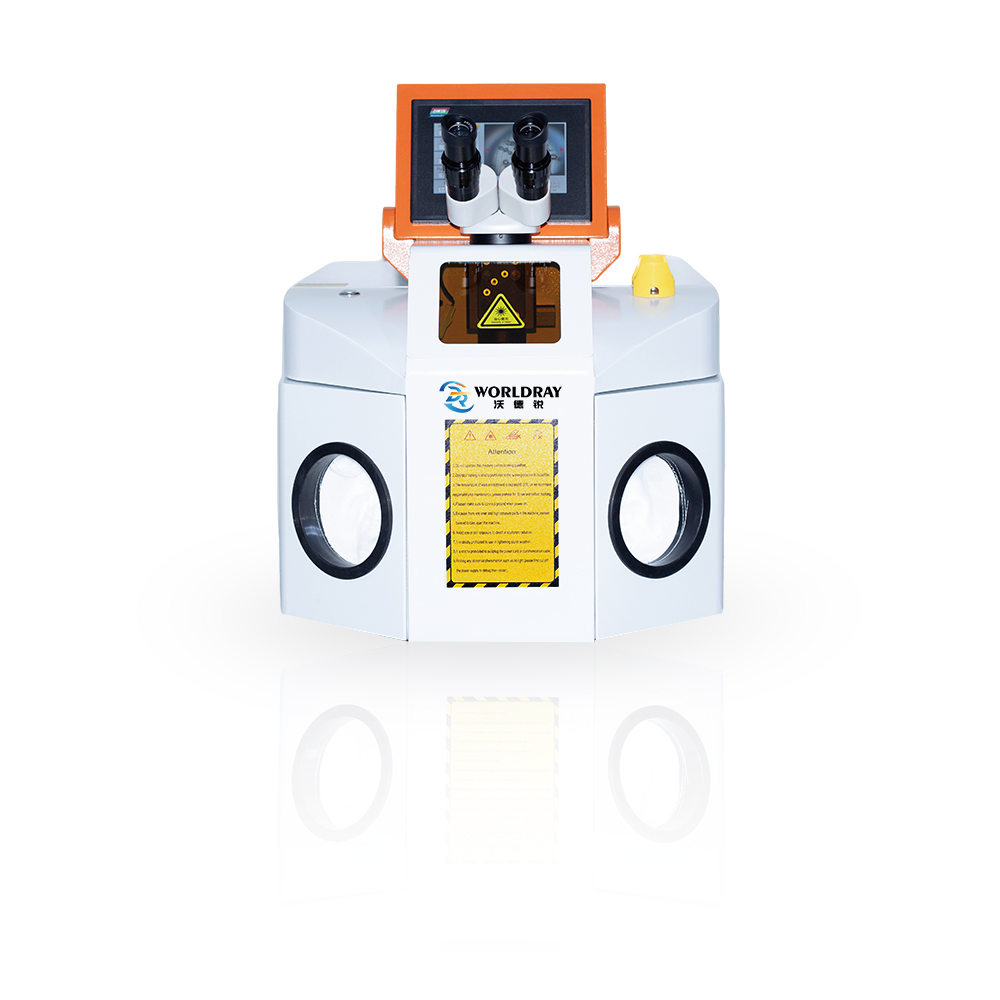

Mini Desktop YAG Portable Jewelry Laser Welder Silver Gold Jewelry Spot Welding Machine
This compact 100W/150W/200W desktop YAG laser welder delivers precise, stable energy for fine jewelry work. Featuring flexible pulse control, 10X microscope, and multilingual interface, it ensures clean, efficient welding for gold, silver, and platinum pieces.
Model: DR-JW200C
Modern Design
Lightweight& Compact
High-Precision
PRODUCT DETAILS
Powerful for Welding
Maximum single-pulse energy reaches 150J, ideal for clean welds on intricate parts. Ensures minimal heat impact and excellent seam quality on delicate jewelry.
Flexible Pulse Control
Pulse width adjustable from 0.1-15ms, frequency 1-50Hz. Allows fine-tuning for various materials and thicknesses to achieve the perfect weld every time.
10X Microscope View
Integrated 10X microscope and 8-inch display with crosshair provide a clear, detailed view of the weld zone. Greatly improves accuracy on small and complex parts.
16-Hour Continuous Work
Supports up to 16 hours of continuous operation with stable internal cooling. Perfect for high-volume production and long working sessions without overheating.
Low Noise Design
Operates at ≤60dB, creating a quiet, comfortable environment. Suitable for jewelry studios focused on precision work without noise distraction.
Compact and Lightweight
Compact 940×580×730mm footprint and 90kg weight make it easy to fit on standard workbenches. Space-saving design ideal for small studios.
Flexible Pulse Control
Pulse width adjustable from 0.1-15ms, frequency 1-50Hz. Allows fine-tuning for various materials and thicknesses to achieve the perfect weld every time.
Multilingual Interface
Supports English, Chinese, German, Russian, Korean, Spanish, Italian, and Vietnamese. Easy to operate for global users with customizable language options.
Stable Beam Quality
Beam divergence ≤8mrad with energy instability <2% ensures consistent welds. Produces clean, narrow seams (0.4-3mm) ideal for fine jewelry details.
Energy Efficient
6KW input power, standard AC220V. Operates reliably in 13°C-28°C and 5%-75% humidity, making it suitable for various working environments worldwide.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Machine model |
DR-JW200C |
|
Laser power supply |
100W /150W /200W |
|
Laser type |
YAG |
|
Laser wavelength |
1064nm |
|
Maximum single-pulse energy |
130~150J |
|
Capacity control |
10--300A |
|
Pulse width regulation |
0.1--15MS |
|
MIcroscope |
10X |
|
CCD |
720P |
|
Laser welding frequency |
1-50HZ |
|
Welding the width |
0.4---3mm |
|
Monitor screen |
8 inches (with cross） |
|
Power required |
AC220V±10% 50HZ/60HZ |
Why choose us
Professional For Jewelry Welding
We use long-lifespan crystals and a YAG laser source, adjustable pulse width and high single-pulse energy to provide strong support for perfect welding of gold, silver, and other materials while minimizing surface heat impact.– View More
Easy Operate and User-friendly
Our jewelry welding machine is designed with a 10X microscope and an 8-inch touch screen, supporting customization in multiple languages. It is very easy to operate for customers in most countries around the world. – View More
Longer Warranty Period
All machine sent out from our factory undergoes repeated testing and strict inspection, so we have full confidence in the quality of our equipment and provide longer warranty services.– View More
7/24 Technical Support
We generously share all our experience and skills in machine operation and maintenance with buyers. If you encounter any problems during use, our professional technical team will assist you as soon as possible. – View More
