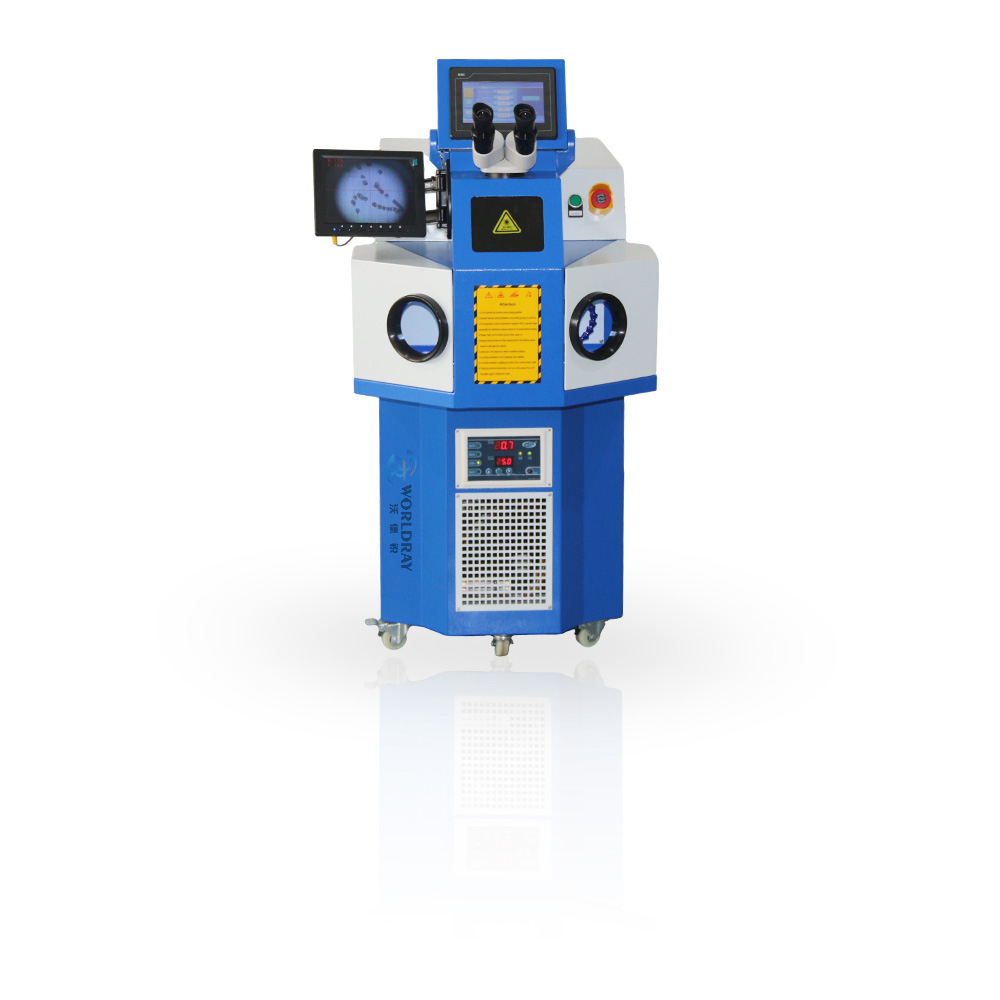

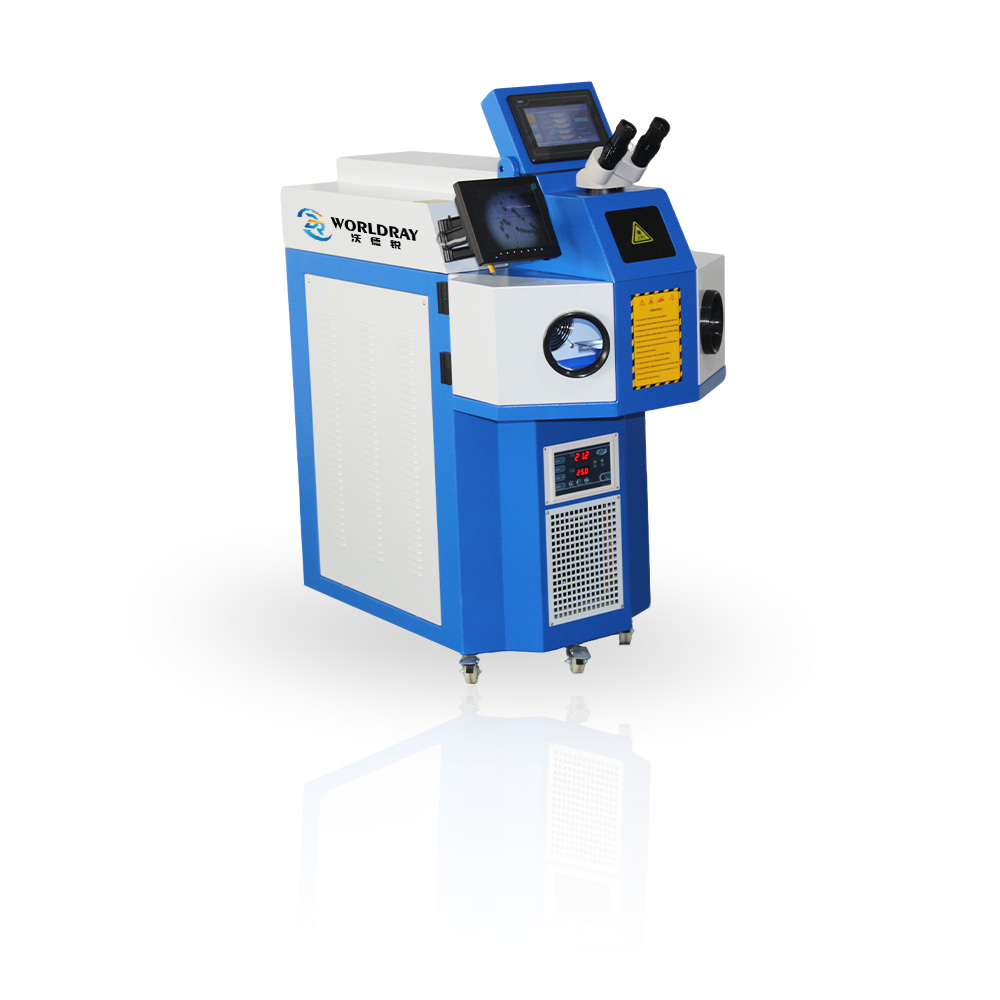

High Quality 200W/300W Silver Gold Jewelry Laser Welding Machine Easy to Operate With Water Cooling System
This classic jewelry welding machine adopts an integrated design and has been widely praised by customers for its high efficiency and energy. It is particularly suitable for welding gold, silver, and other high reactive materials. High precision welding and adjustable pulse width can help you easily achieve high-quality defect free welding. The chiller can be either built-in or external, and the color can be customized.
Model: DR-CJW200
Classic Design
High Energy
High-Precision
PRODUCT DETAILS
High Laser Power
200W/300W YAG laser ensures reliable, high-energy welding performance for gold, silver, platinum, and more. It enables clean, precise joins even on delicate or intricate jewelry designs without damaging adjacent areas.
High Single-Pulse Energy
Delivers up to 150J single-pulse energy for deeper penetration and stronger welds. Ideal for both micro-welding and larger structural connections in complex jewelry components or repairs.
Ultra-Fine Adjustable Width
Supports 0.4–3mm welding width to handle everything from ultra-fine filigree work to wider seams. Flexibility meets a range of jewelry production and repair requirements easily.
Clear CCD Monitoring
Equipped with a 720P CCD and 8-inch screen with crosshair. Provides sharp, real-time visibility for precise targeting, boosting operator confidence and reducing error rates during welding.
Stable Energy Output
With energy instability below 2%, it guarantees consistent weld quality. This minimizes spatter, porosity, and defects, ensuring superior finish on valuable jewelry pieces.
Adjustable Pulse Settings
Pulse width 0.1-15ms and frequency 1-50Hz provide full control. Fine-tune to suit different metals, thicknesses, and joint requirements for perfect results every time.
Long Continuous Operation
Supports up to 24 hours of continuous work without overheating. Perfect for high-volume workshops or production lines requiring reliable, long-duration operation.
Compact, Low-Noise Design
Compact size (1100×680×1370mm) and ≤60dB noise level fit small workshops or retail spaces. Provides a quiet, clean working environment without compromising power.
Easy Maintenance System
Uses replaceable protective glass/lens and features easy access to consumables. Lowers operating costs while maximizing uptime and machine longevity.
Flexible Power Compatibility
Works with AC220V±10% at 50/60Hz. This ensures stable performance across different regions and workshop setups, with 6KW power demand for efficiency.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Machine model |
DR-CJW200 |
|
Laser power supply |
150W /200W/300W |
|
Laser type |
YAG |
|
Laser wavelength |
1064nm |
|
Maximum single-pulse energy |
130~150J |
|
Capacity control |
10--300A |
|
Pulse width regulation |
0.1--15MS |
|
MIcroscope |
10X |
|
CCD |
720P |
|
Laser welding frequency |
1-50HZ |
|
Welding the width |
0.4---3mm |
|
Monitor screen |
8 inches (with cross） |
|
Power required |
AC220V±10% 50HZ/60HZ |
|
Machine Size and Weight |
1100*680*1370mm 150KG |
Why choose us
Professional For Jewelry Welding
We use long-lifespan crystals and a YAG laser source, adjustable pulse width and high single-pulse energy to provide strong support for perfect welding of gold, silver, and other materials while minimizing surface heat impact.– View More
Easy Operate and User-friendly
Our jewelry welding machine is designed with a 10X microscope and an 8-inch touch screen, supporting customization in multiple languages. It is very easy to operate for customers in most countries around the world. – View More
Longer Warranty Period
All machine sent out from our factory undergoes repeated testing and strict inspection, so we have full confidence in the quality of our equipment and provide longer warranty services.– View More
7/24 Technical Support
We generously share all our experience and skills in machine operation and maintenance with buyers. If you encounter any problems during use, our professional technical team will assist you as soon as possible. – View More
