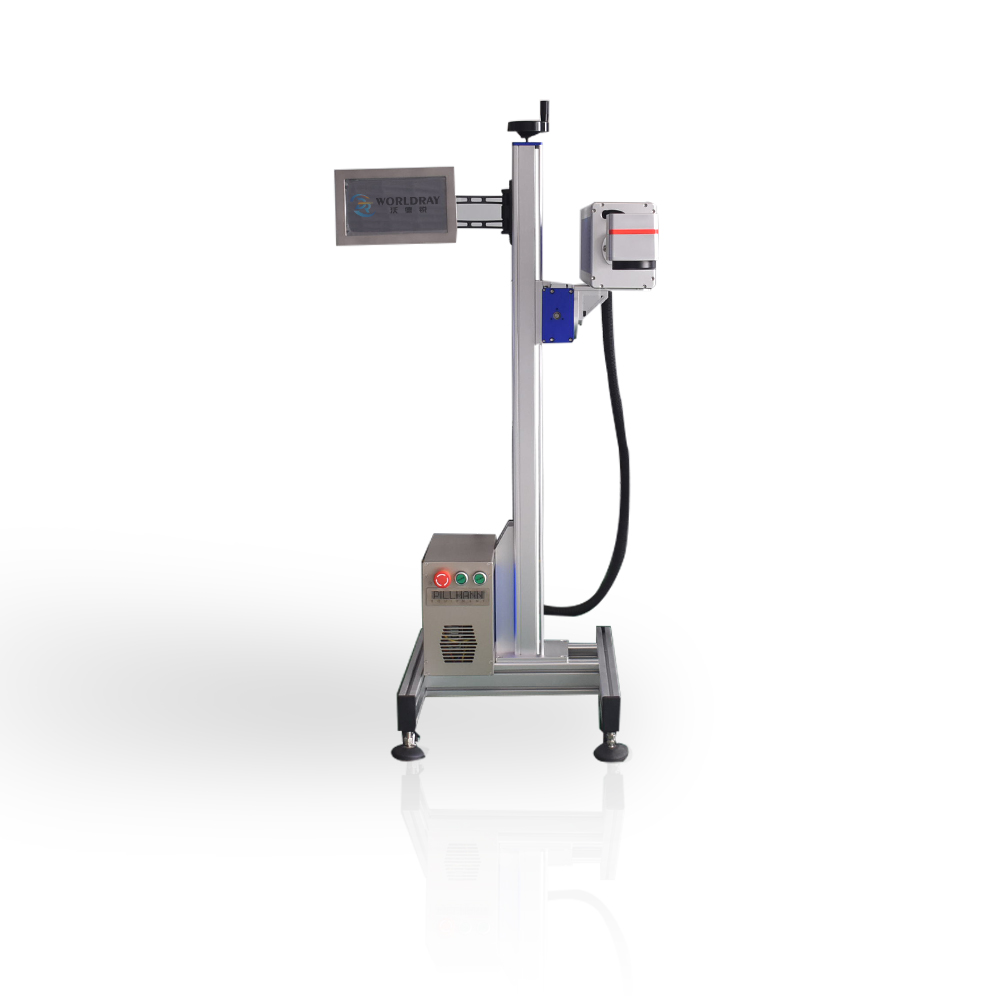

Flying Fiber Laser Marking Machine for Precision Production Lines
A high-speed, customizable flying fiber laser marking machine ideal for precision marking. Supports conveyor belt and camera integration for automated, accurate marking in production line environments.
Model: DR-LM20
✔Customize Supported
✔Suitable for Mass Marking
✔High Precision Marking
Customize Supported
Mass Marking
User Friendly
PRODUCT DETAILS
【Variable Output Power】
Available in 20W, 30W, 50W, variants, allowing tailored solutions for diverse marking and engraving requirements.
【Premium Main Board】
Uses a Beijing JCZ mainboard for enhanced stability and precision, making it ideal for high-demand marking environments.
【Advanced Galvanometer】
Equipped with a ZBTK galvanometer for high-speed, accurate beam positioning and long-lasting performance.
【High Precision Marking】
Achieves a repeat accuracy of ±0.003mm and a minimum line width of 0.012mm for sharp, crisp, and reliable marks.
【Speed and Efficiency】
Marks over 1000 standard characters per second, making it ideal for high-throughput production lines.
【Custom Marking Area】
Provides adjustable working area from 100mm–200mm, offering flexible marking area sizes for varied product dimensions.
【Robust Laser Lifespan】
Operates reliably for over 100,000 hours, ensuring long-term cost efficiency and minimal downtime in industrial settings.
【Versatile Compatibility】
Supports multiple file formats and fonts from the Windows system, making it ideal for complex text and graphic marking.
【Easy Integration】
Enables seamless integration with conveyors and camera-positioning systems for fully automated precision marking and coding.
【Compact and Efficient】
Small, robust design weighing under 35kg, with air cooling and low energy consumption (<350W) for easy deployment and long-term use.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Laser Power |
20W 30W 50W |
|
Laser type |
Fiber Laser |
|
Source Brand |
Max /Raycus Laser |
|
Laser Wavelength |
1064nm |
|
Power Adjustment |
0--100% |
|
Pulse Repetition Frequency |
20KHz --100KHz |
|
Marking Speed |
>1000 standard characters/second |
|
Service Life |
>100000 hours |
|
Marking depth |
0.015-0.5mm |
|
Repeat accuracy |
± 0.003mm |
|
Engraving Line Speed |
≤ 7000mm/s |
|
The marking focal length |
F=150mm |
|
Marking Range |
100-200mm (optional) |
|
Whole Machine Power |
≤500W |
|
Noise |
≤60db |
|
Cooling Mode |
Water cooling |
|
Supported Formats |
All fonts/fonts (including national language text/barcodes, etc.) in the WINDOWXP operating system font library; BMP/PCX and other vector graphics files with 256 grayscale image files and DXF/PLT format |
|
Power required |
AC220V±10% /50Hz |
|
Power supply |
Single-phase AC 90-260V/50HZ-60HZ |
|
Host System Size |
650 * 800 * 1350mm |
Why choose us
Quality Components:
Our laser marking machines use high-quality components from reputable manufacturers, ensuring durability and reliability.– View More
Multilingual Software
The software supports 21 languages, including English, French, Spanish, German, Chinese, and Russian, catering to international users.– View More
Customization Options
We offer customization options for lens focal length and marking area to meet specific application requirements. – View More
Technical Support
We provide comprehensive technical support and after-sales service to assist you with any queries or issues you may encounter.– View More
