Economic Fiber Laser Cutting Machine For Carbon Steel /Sainless Steel /Aluminum /Copper Metal Plates

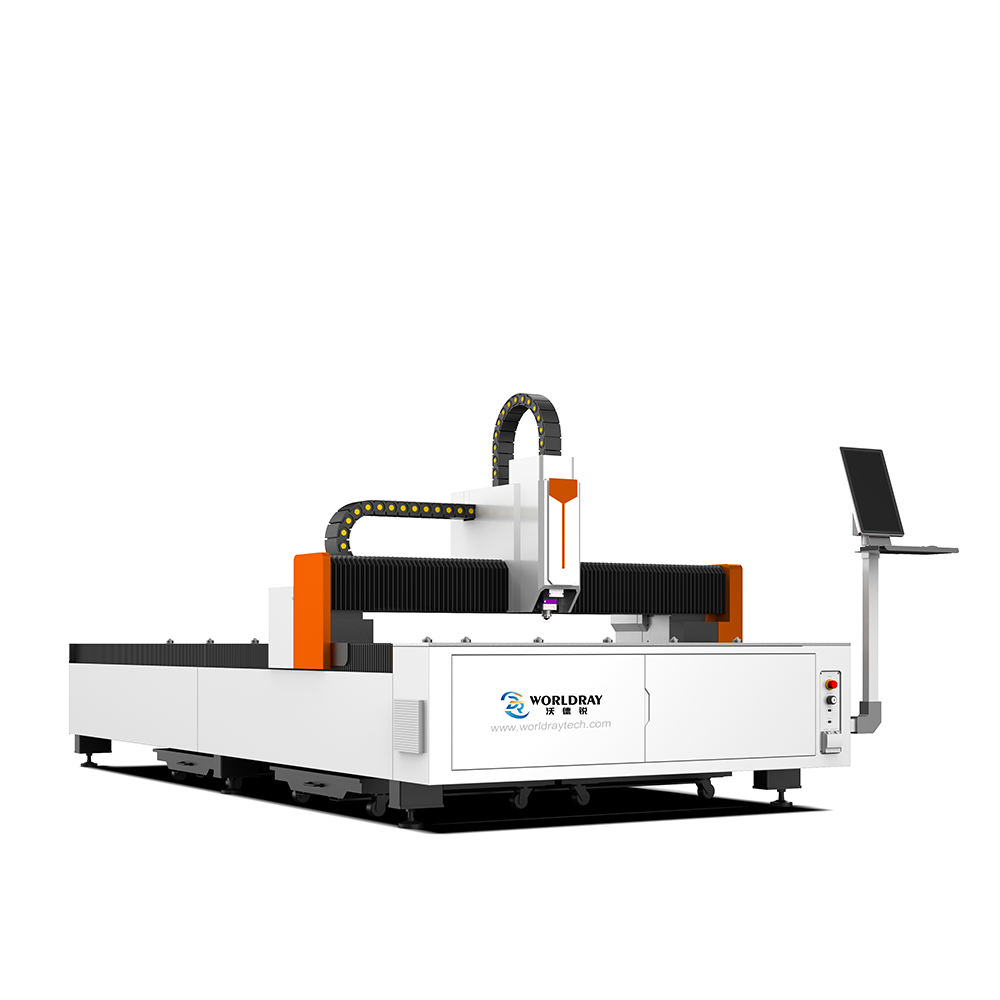

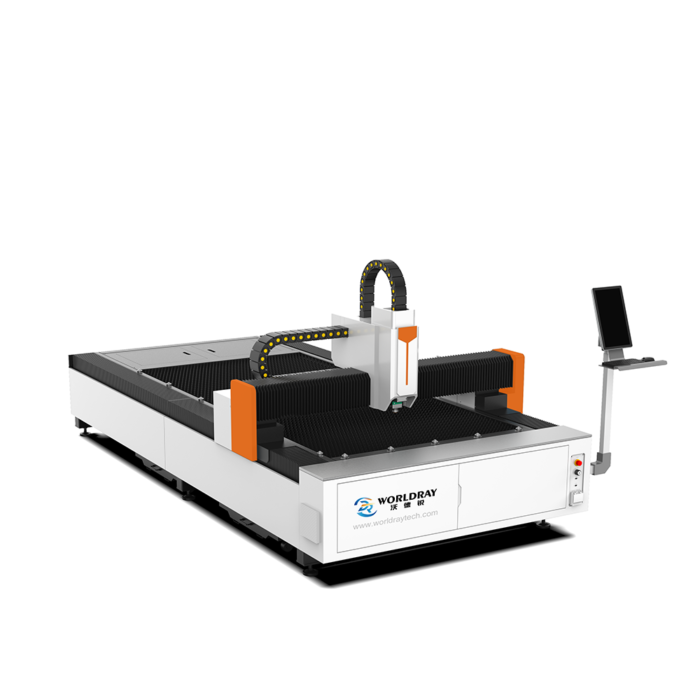

The A3015 fiber laser cutting machine is engineered to cut stainless steel, carbon steel, aluminum, copper, and other sheet metals with unmatched accuracy (0.03mm positioning precision) and blistering speeds up to 115m/min. With customizable laser power ranging from 1500W to 6000W, this laser cutter adapts seamlessly to projects demanding both intricate detail and high-volume throughput.
Model: DR-A3015
Intelligent control
High-Speed
High-Precision
PRODUCT DETAILS
The A3015 fiber laser cutting machine is engineered to cut stainless steel, carbon steel, aluminum, copper, and other sheet metals with unmatched accuracy (0.03mm positioning precision) and blistering speeds up to 115m/min. With customizable laser power ranging from 1500W to 6000W, this laser cutter adapts seamlessly to projects demanding both intricate detail and high-volume throughput.
Uncompromising Stability & Durability
Built with a proprietary dual-gantry bed structure, the A3015 ensures long-term stability through interlocking joint design, eliminating deformation even under continuous heavy-duty operation. The reinforced framework supports 0.02mm repeat positioning accuracy, maintaining razor-sharp precision across its 3050×1530mm working area. Combined with 0.8G acceleration and 100mm Z-axis travel, this laser cutting machine delivers consistent results on materials from ultra-thin foils to thick plates.
Intelligent Modular Design for Efficiency
The modular workbench revolutionizes operational flexibility – its assembly-ready panels offer exceptional load-bearing capacity while enabling swift disassembly for maintenance or part replacement. Paired with collision-avoidance sensing technology, the machine proactively detects warped sheets and auto-adjusts the laser head’s path, reducing downtime by 40% and slashing maintenance costs. The smart dust extraction system (optional) features oversized ducts and zone-specific suction, achieving 95% smoke/particulate removal for cleaner production environments.
Advanced Thermal Protection & Precision
Innovative anti-burn insulation technology shields critical components from heat distortion, extending service life by 30% while preserving ±0.05mm cutting tolerances. The adaptive height-sensing laser head maintains optimal focus across uneven surfaces, ensuring flawless cuts on reflective materials like copper and aluminum. With real-time temperature monitoring, the system automatically adjusts cooling parameters to prevent thermal drift, guaranteeing stable performance during marathon sessions.
Plug-&-Play Productivity
Engineered for intuitive operation, the A3015 laser cutting machine combines industrial muscle with user-friendly controls. The 10-inch smart HMI offers one-touch parameter optimization based on material thickness and type, while the drag-and-drop nesting software maximizes sheet utilization. Quick-change fixtures and pre-calibrated tool paths enable job transitions in under 3 minutes. From aerospace-grade aluminum (0.5mm) to heavy steel plates (25mm), this machine handles diverse applications with surgical precision.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Working area |
3050*1530mm |
|
Laser power supply |
1500W 2000W 3000W 6000W |
|
Positioning accuracy |
0.03mm |
|
Repositioning accuracy |
0.02mm |
|
Max. running speed（X/Y axis linkage) |
115m/min |
|
Max. acceleration（X/Y axis linkage) |
0.8G |
|
Voltage |
380V 3PH 50/60HZ |
|
Z-axis length of travel |
100mm |
|
Overall dimension of main machine |
4600*2800*2100mm |
|
Total weight of machine (domestic trade) |
2000kg |
