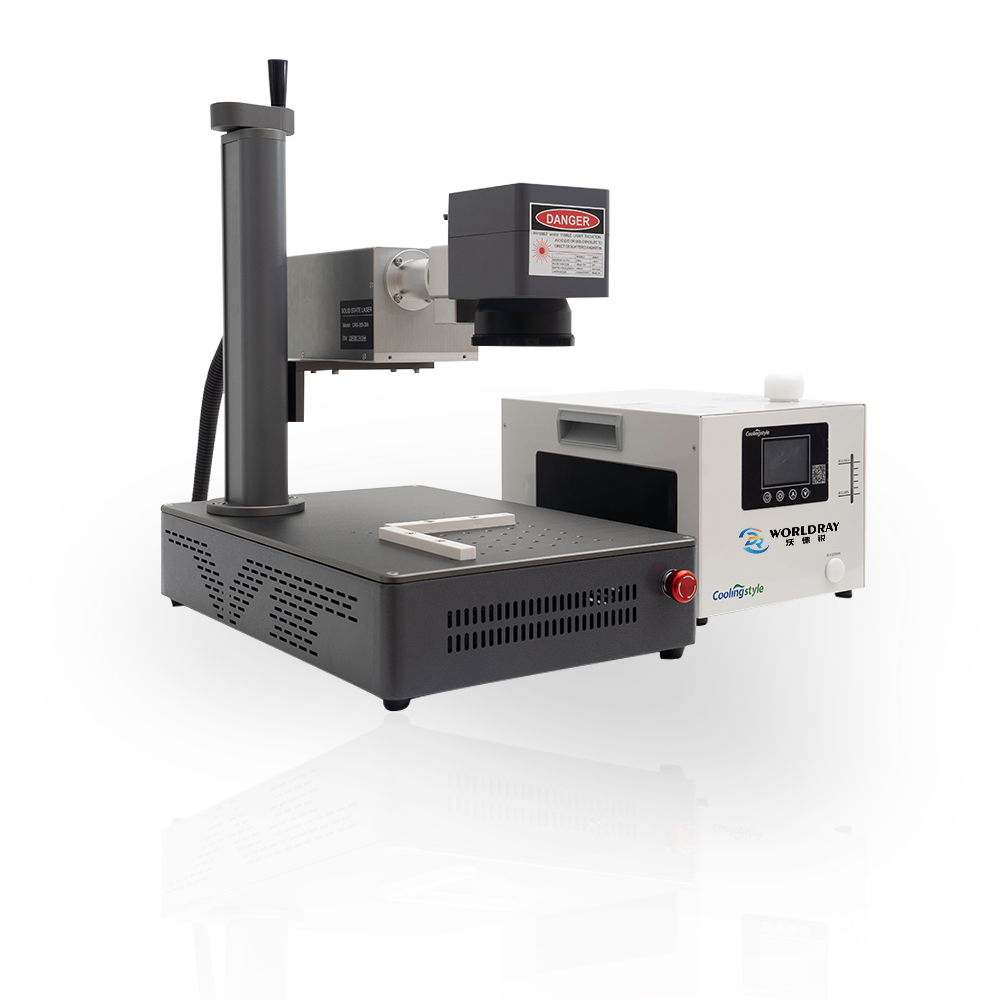

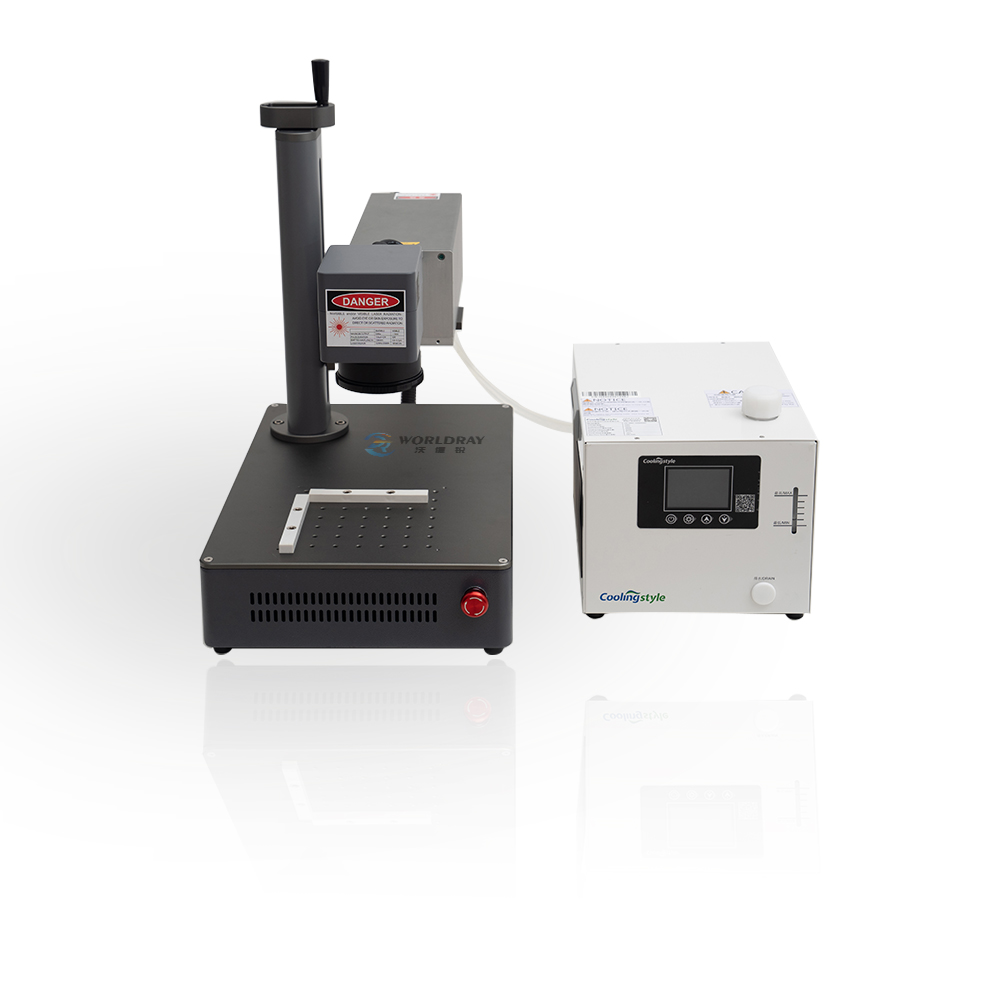

Desktop UV Laser Marking Machine with External Chiller For Plastic/Glass/Ceramics/Metal/Leather/Wood
This desktop UV laser marking machine features an external water chiller, significantly reducing the thermal load on the main unit and providing more effective cooling. It greatly extends the lifespan of the laser source and optical components, improves marking stability and quality, and reduces maintenance costs, making it ideal for a wider range of temperature environments.
Model: DR-UV5W
✔UV Marking
✔Suitable for Multiple Materials
✔High Precision Marking
Better Cooling
Multi Language
Low Heat Impact
PRODUCT DETAILS
【Powerful UV Laser】
Operates with a 5W 355nm UV laser source, ideal for precision marking of sensitive materials.
【Adjustable Pulse Rate】
Provides pulse rate range of 10kHz–150kHz, with optional upgrade to 200kHz for enhanced marking speed and quality.
【High Beam Quality】
Features TEM00 beam mode (M² <1.2) ensuring crisp, sharp, and well-defined marks on complex surfaces.
【 Consistent Stability】
Maintains average power stability of <3% over 24 hours, making it ideal for long-running precision marking jobs.
【 Ultra-Fine Spot】
0.7mm spot diameter and >90% spot roundness enable highly detailed marking and intricate design applications.
【External Water Chiller】
Comes with a separate chiller (345×248×215mm, 10kg) ensuring stable cooling, extended laser life, and improved marking precision, especially for long working hours.
【Compact and Ergonomic Design】
With a machine size of 500×330×580mm and weight of only 20kg, it's ideal for desktop use in workshops, labs, and small production environments.
【Wide Frequency Range】
Operates from 10kHz to 150kHz (option for 200kHz), making it adaptable for diverse marking needs and materials.
【High Precision】
Achieves pulse stability of <3% RMS and beam pointing stability of <50µrad for reliable and accurate marking every time.
【Versatile Compatibility】
Supports PLT, DXF, BMP files and operates across various platforms (Windows), making it ideal for diverse marking needs.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Model |
DR-UV5W |
|
Laser Power |
5W |
|
Laser type |
UV Laser |
|
Laser Wavelength |
355nm |
|
Computer |
Optional |
|
Marking speed |
≤12000mm/s |
|
Cooling system |
Water Cooling |
|
Focusing Lens |
Focal length 183.5mm |
|
Minimum line width |
0.0012mm |
|
Instability of energy |
＜2% |
|
Beam Divergence |
≤8mrad |
|
Minimal beam diameter |
0.001mm |
|
Maximum speed |
12000mm/min |
|
Repeat positioning accuracy |
0.003mm |
|
Scope of marking |
110*110mm (optional) |
|
Multi-language |
English, French, Spanish, German, Chinese, Russian, Arabic and others 21 languages |
|
Data protection |
With power-down data protection function |
|
File format |
BMP/DXF/HPGL/JPEG/PLT |
|
Lithium standby time |
About 12 hours |
|
Power required |
AC220V±10% /50Hz |
|
Machine size and weight |
500×330×580mm, 20KG |
|
Chiller size and weight |
345× 248× 215mm, 10KG |
