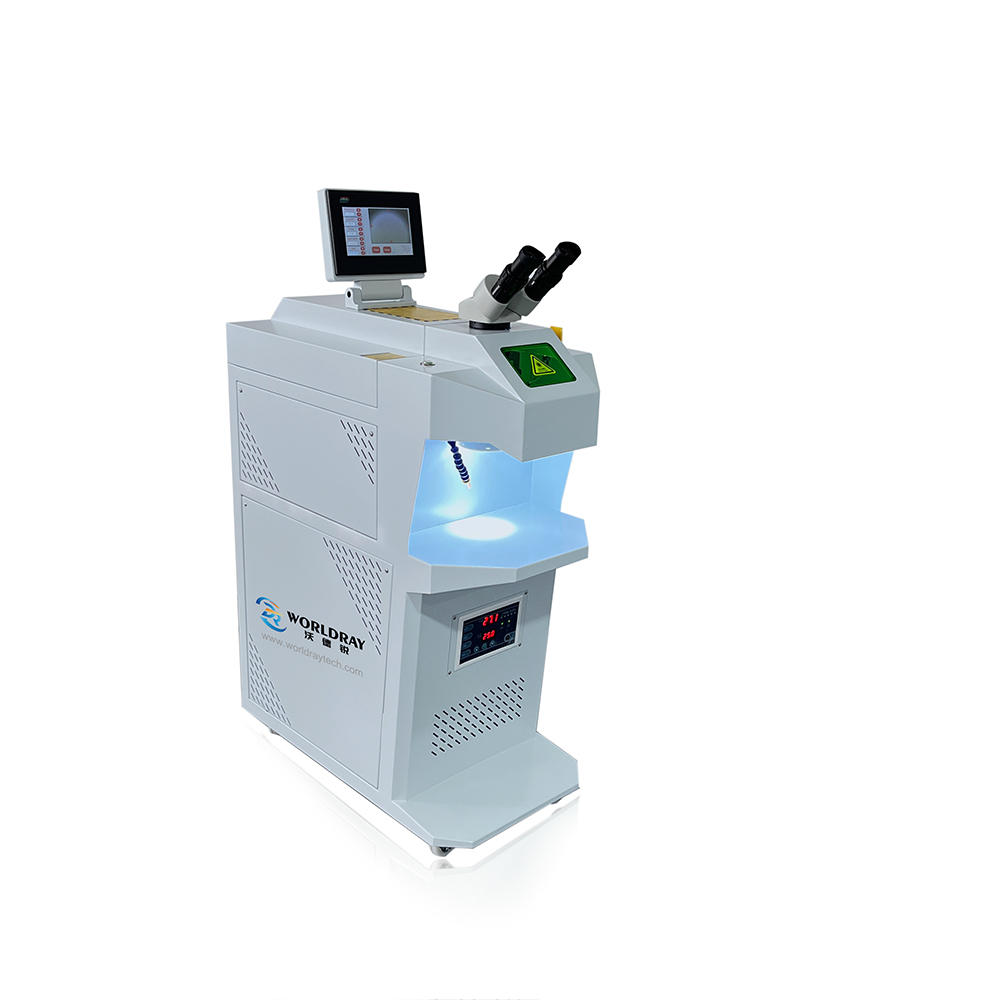

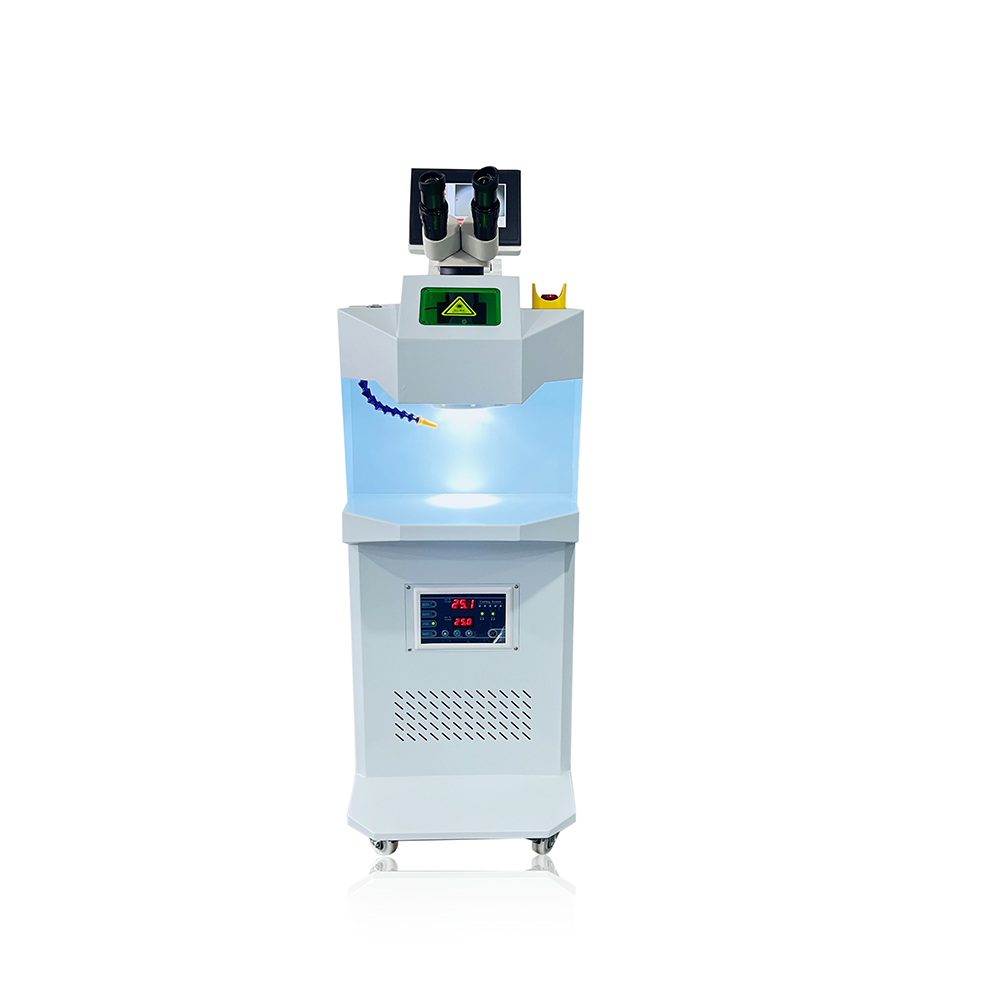

Classic cabinet style jewelry welding machine for gold and silver necklaces, earrings, bracelets

The energy, pulse width, frequency and spot diameter can be adjusted in a large range to realize different welding efects. The parameters can be adiusted by the lever in the seal cavitv, which is simple and hiahlv efficient. With 8-10 years service life. Every single xenon lamp can stand over 8 million flashings during its lifetime.Most advanced light shielding system eliminates the irritation to eyes by reflected laser during work.Able to work for 24 hours continuously, stable performance,free of maintenance in 10,000 hours.

Model: DR-JW200 Plus

Intelligent control

High-Speed

High-Precision

PRODUCT DETAILS

High-Precision Laser Performance

Equipped with a 1064nm YAG laser and adjustable pulse width (0.1–15ms), this welder ensures superior precision for intricate jewelry work. With ≤8mrad beam divergence and 10X microscope, it achieves spot-on accuracy (0.4–3mm weld width) and stable energy output (<2% instability), ideal for delicate gemstone and metal settings.

User-Friendly Operation

The 7-inch cross-screen monitor and 720P CCD provide real-time, clear visuals for precise control. Coupled with F=110mm focal length and 1–50Hz frequency adjustments, users achieve consistent welds while minimizing consumable wear

Long Lifespan and work 24 hours without interruption

Corrosion resistant and high temperature resistant, with 8-10 years service life. Every single xenon lamp can stand over 8 million flashings during its lifetime.

Versatile & Environmentally Adaptive

Designed for demanding workshops, it adapts to 5%–75% humidity and oil mist ≤15mg/m³. Compact (710*400*1120mm, 70kg) yet powerful (6KW input), it runs on AC220V±10%, ensuring reliability across global voltage standards for jewelry artisans worldwide.

Parameter of Equipments

Parameter	Specification
Machine model	DR-JW200 Plus
Laser power supply	100W /150W /200W
Laser type	YAG
Laser wavelength	1064nm
Maximum single-pulse energy	130J
Capacity control	10--300A
Pulse width regulation	0.1--15MS
MIcroscope	10X
CCD	720P
Laser welding frequency	1-50HZ
Welding the width	0.4---3mm
Monitor screen	7 inches (with cross）
Power required	AC220V±10% 50HZ/60HZ
