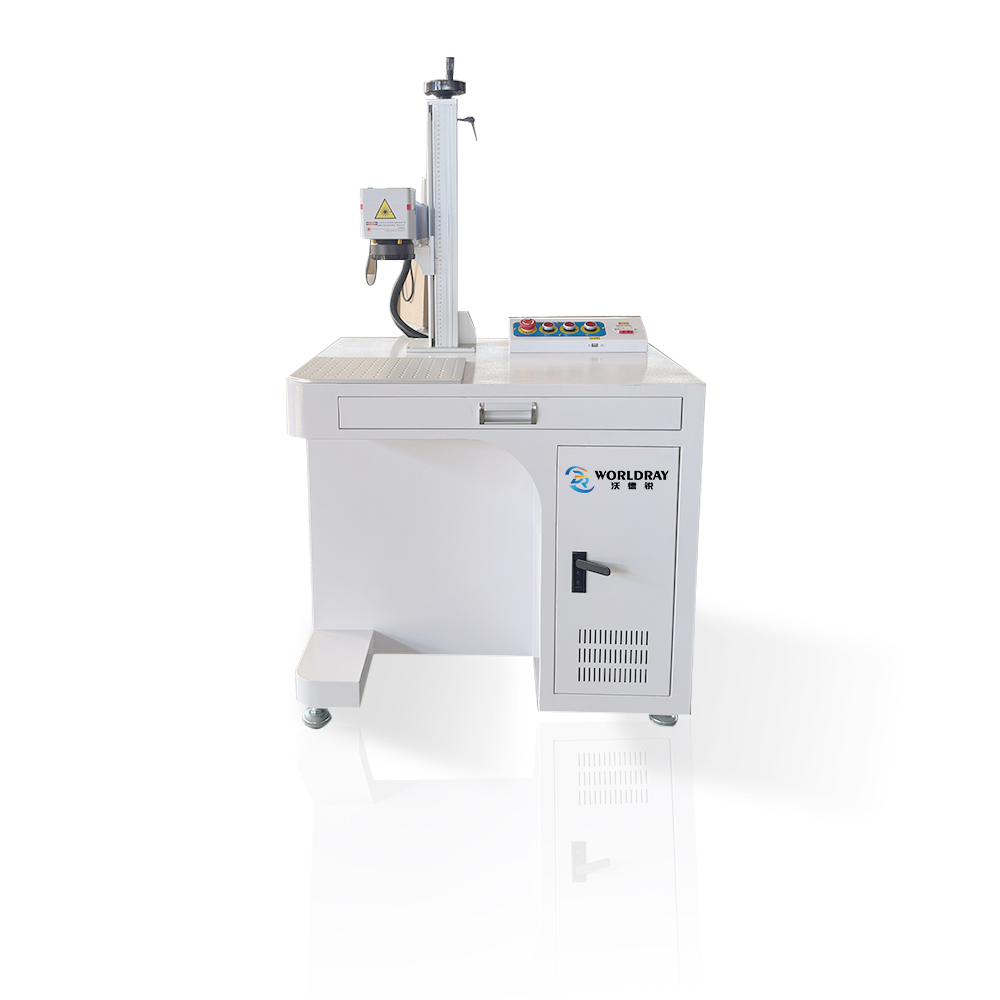

Cabinet-Style Fiber/CO2/UV Laser Marking Machine Customized Supported
A robust, customizable fiber laser marking solution with precision marking, optional conveyor and camera integration for automated positioning, ideal for multi-tasking in complex production environments and precision-focused industries.
Model: DR-CM20
✔Customize Supported
✔Integrated Design
✔High Precision Marking
Customize Supported
Integrated Design
User Friendly
PRODUCT DETAILS
【Variable Output Power】
Available in 20W, 30W, 50W, 70W, and 100W variants, allowing tailored solutions for diverse marking and engraving requirements.
【High Beam Quality】
Features ≤1.4 M² beam quality, ensuring sharp, crisp markings for complex patterns, text, and precision details across materials.
【Ultra-High Speed Marking】
Operates at speeds ≤100,000mm/s, making it ideal for high-volume, time-sensitive production environments.
【Custom Marking Areas】
Supports adjustable working area sizes (11×11cm, 15×15cm, 20×20cm), making it adaptable for a range of part sizes.
【Excellent Precision】
Enables repeatability of ±0.002mm, ensuring the highest precision for tiny text and complex designs.
【Flexible Marking Depth】
Supports adjustable depth based on material, making it ideal for surface marking, deep engraving, and texturing applications.
【Customizability】

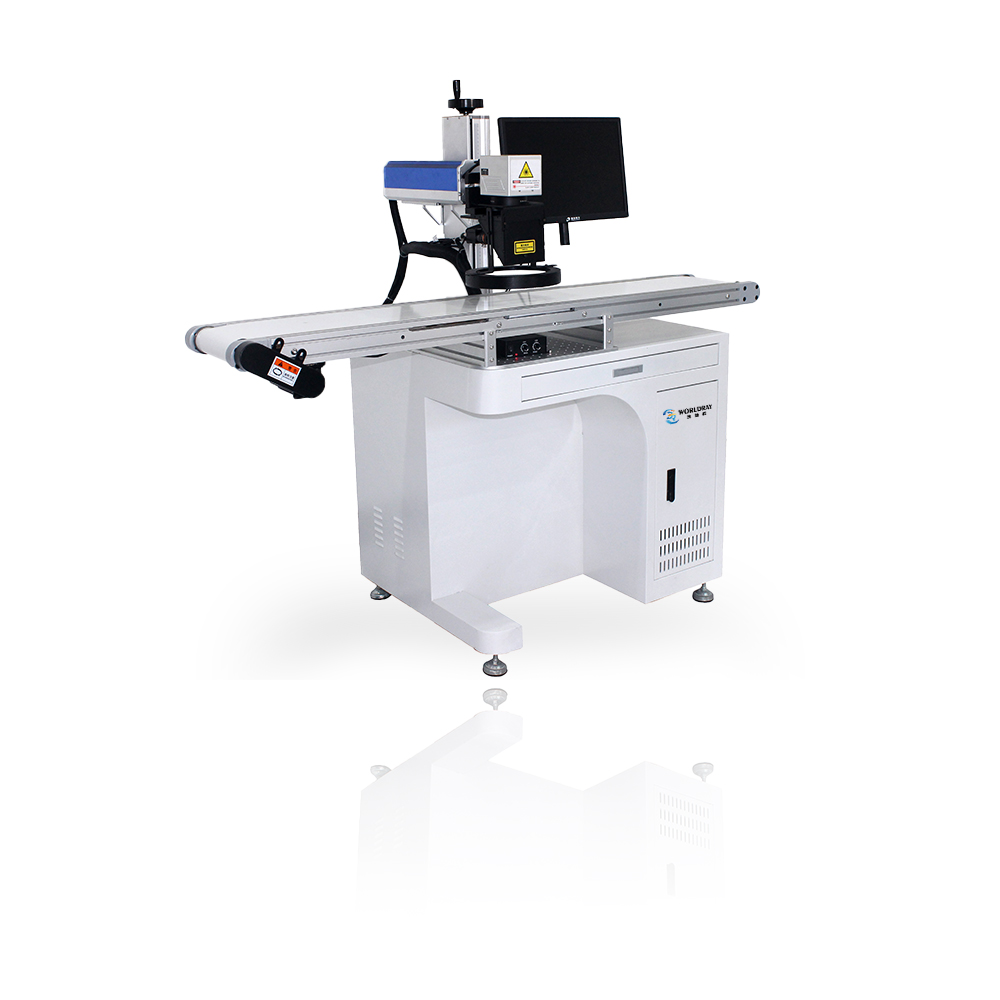

Supports optional conveyor, camera, and XY-axis for 2D marking and visual positioning, making it ideal for automated production lines.
【Robust Build】
Designed with a solid cabinet-style structure (1350×800×650mm), making it ideal for heavy-duty, long-running marking environments.
【Reliable & Stable】
Operates with <3% output power fluctuation and an estimated service life of roughly 10,000 working hours for long-lasting performance.
【Broad Compatibility】
Works with standard USB input files and Windows OS, making it seamless to integrate into existing production setups and digital design environments.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Laser Power |
20W 30W 50W 70W 100W |
|
Laser type |
Fiber Laser |
|
Source Brand |
Max /Raycus Laser |
|
Laser Wavelength |
1064nm |
|
Power Adjustment |
0--100% |
|
Pulse Repetition Frequency |
30-60HZ |
|
Beam Quality |
≤1.4 M2 |
|
Service Life |
About 10000 working hours |
|
Marking depth |
0.015-0.5mm |
|
Repeat accuracy |
≤0.001mm |
|
Engraving Line Speed |
≤100000mm/s |
|
The marking focal length |
F=150mm |
|
Scope of marking |
150*150mm (optional) |
|
Whole Machine Power |
≤500W |
|
Noise |
≤60db |
|
Cooling Mode |
Air Cooling |
|
Supported Formats |
PLT. DXF. BMP |
|
Power required |
AC220V±10% /50Hz |
|
Machine size and weight |
1350*800*650mm, 98KG |
|
Packaging Dimensions |
1150*900*700mm, 105KG |
Why choose us
Quality Components:
Our laser marking machines use high-quality components from reputable manufacturers, ensuring durability and reliability.– View More
Multilingual Software
The software supports 21 languages, including English, French, Spanish, German, Chinese, and Russian, catering to international users.– View More
Customization Options
We offer customization options for lens focal length and marking area to meet specific application requirements. – View More
Technical Support
We provide comprehensive technical support and after-sales service to assist you with any queries or issues you may encounter.– View More
