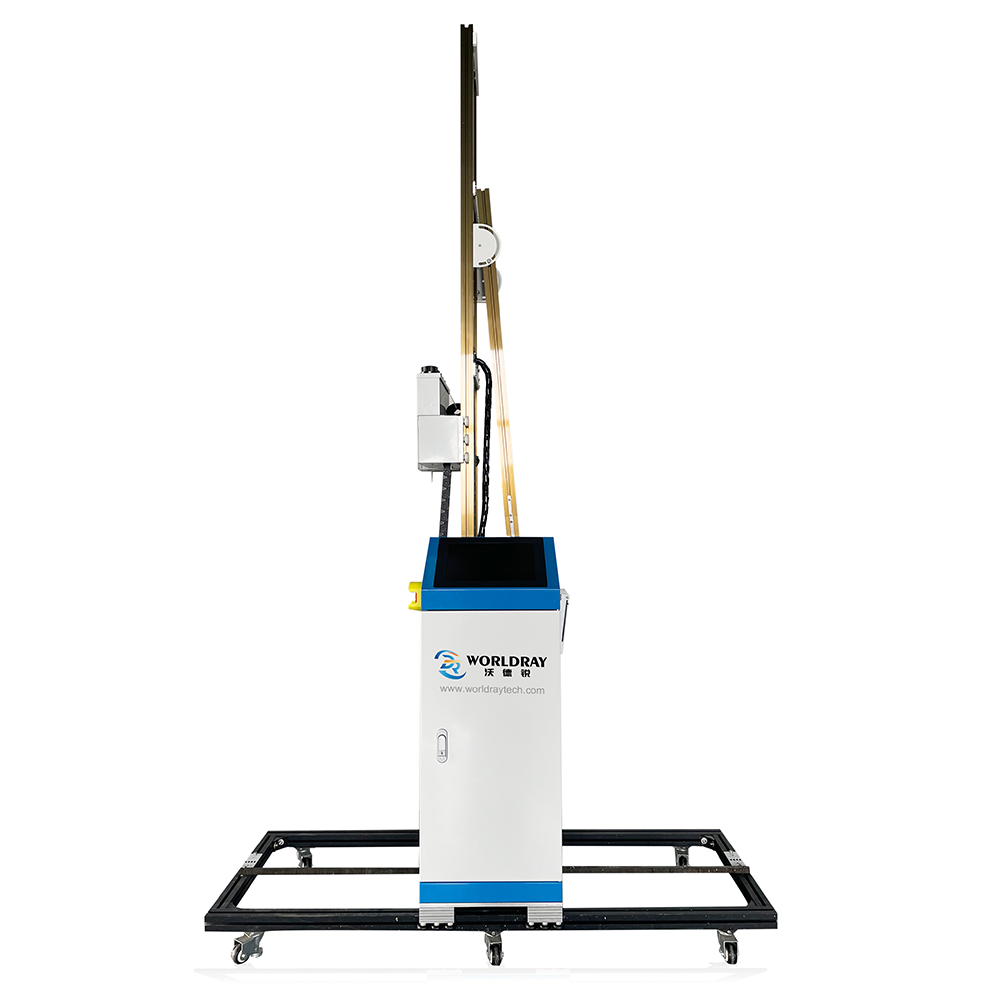

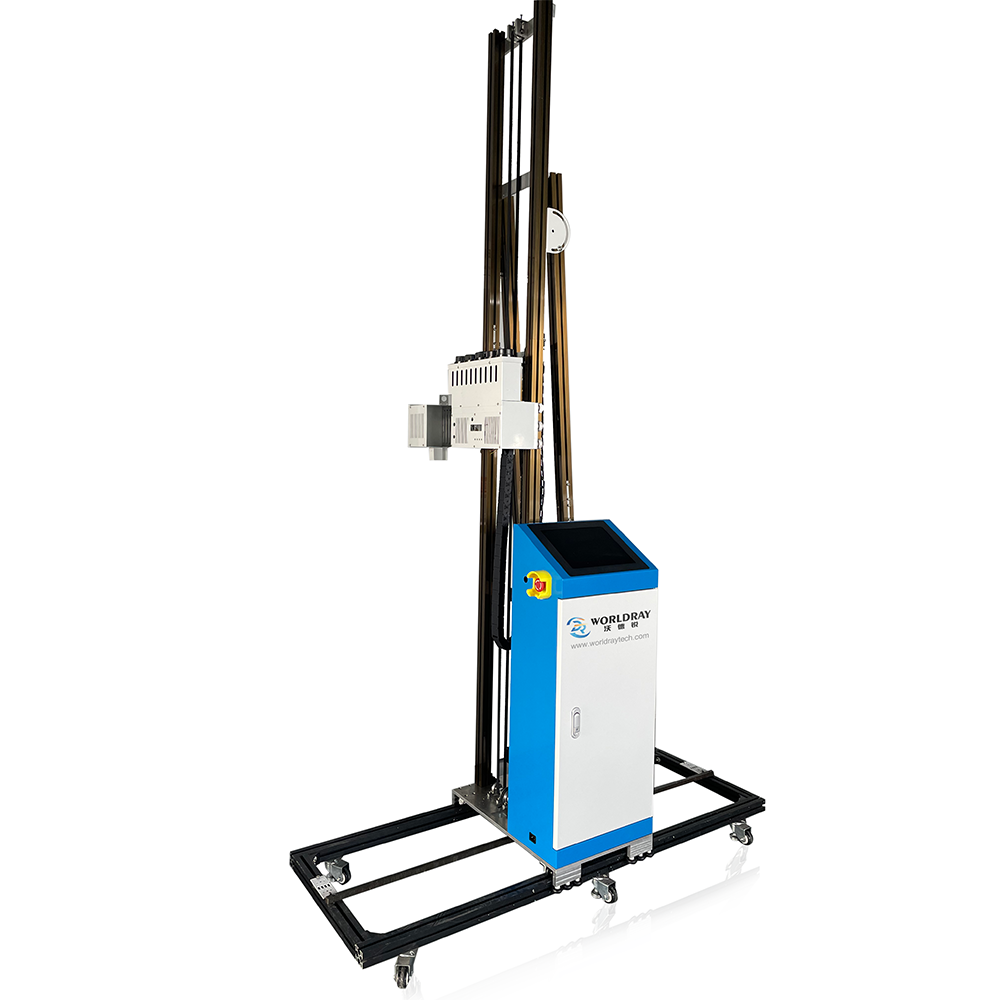

3D Wall Printer Machine Automatic 3d Vertical Wall Printer Direct to Wall Painting Machine Inkjet Printer
The rail type wall printer machine redefines indoor and outdoor wall decoration standards with modular rail design and industrial grade stability. Equipped with an industrial grade control computer and an integrated design, it is specially designed to meet the complex terrain and high-precision output requirements of outdoor environments. It is compatible with multiple media such as white walls, tiles, glass, metal plates, and brick walls.
Model: DR-BT3
Intelligent control
High-Speed
High-Precision
PRODUCT DETAILS
The rail type wall printer machine redefines indoor and outdoor wall decoration standards with modular rail design and industrial grade stability. Equipped with an industrial grade control computer and an integrated design, it is specially designed to meet the complex terrain and high-precision output requirements of outdoor environments. It is compatible with multiple media such as white walls, tiles, glass, metal plates, and brick walls.
Precise breakthrough in global coverage

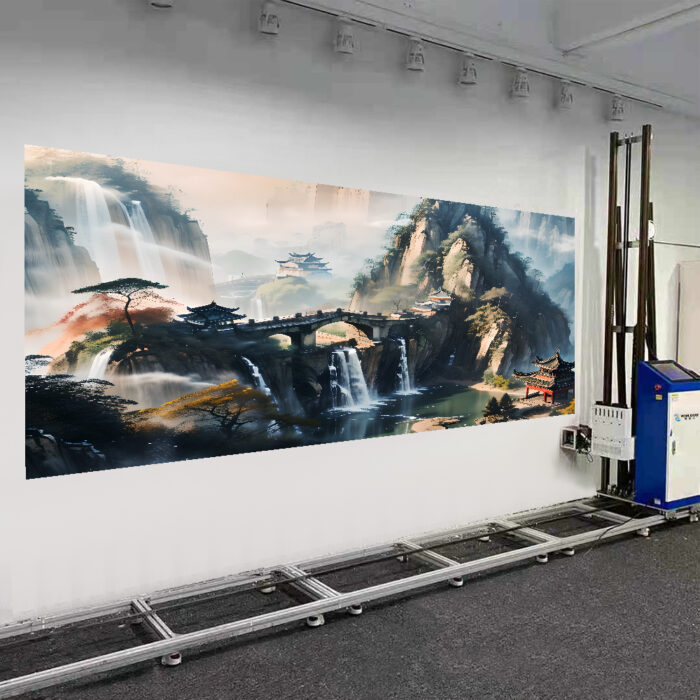

From dynamic advertisements on store roll up gates to marble art background walls in hotels, from high-altitude glass curtain walls to metal plate signage in industrial plants, this wall printing machine effortlessly handles ultra wide walls with its 3-meter printing height and wireless infinite splicing technology. Supports 15+professional file formats such as PSD, CDR, AI, PDF, etc., combined with 1440x2880dpi ultra clear resolution and micro piezoelectric variable ink drop technology (minimum ink drop 3.5pl), it can accurately restore 0.1mm line details and achieve photographic grade image texture.
From art museum level customization to kilometer long city wall painting, the rail mounted wall printer uses industrial genes and intelligent cores to make every wall a visual revolution scene that spans dimensions!
Five core advantages set industry benchmarks
Track level stability control
strengthened alloy track frame+hyperbolic banner sensor, intelligent perception of 0.5mm level unevenness on the wall surface, automatic leveling with bidirectional induction, zero error in outdoor slope operation;
Silent and efficient
20W/peak 250W ultra-low power consumption without load, equipped with positive pressure ink supply system and high capacitance technology, 6-10 ㎡/hour high-speed output, construction noise below 70 decibels;
Wireless Smart Connection
The genuine UltraPrint software supports both wired and wireless dual-mode transmission, equipped with automatic memory recovery technology, and can continue to play without losing frames even when powered off;
Hardcore structure
The 95kg all metal body is equipped with a 4-level shock absorption system, designed to resist wind and bumps, and is suitable for extreme environments ranging from -30 ℃ to 60 ℃;
Eco friendly
UV ink solidifies immediately, with zero VOC emissions, certified by SGS weather resistance, and outdoor color retention for more than 5 years.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Ink |
UV Ink (C-M-Y-K-W) |
|
Printing height (m) |
3.0m |
|
Printing width (m) |
Infinite width |
|
Nozzle model |
Epson DX10/DX7/I1600 (Optional) |
|
Nozzle number |
Double Heads (Customizable) |
|
Printing speed |
6-14 m2 / Hour |
|
Printing accuracy |
360x720dpi/720x1080dpi/720x1440dpi |
|
Machine power |
350W |
|
Voltage |
110V-220V(mobile power can be used) |
|
Picture format |
PSD,CDR, JPG, JPEG, PNG, BMP, TIF, EPS, AI, PDF and other formats |
|
Ground Track |
4 sections, 1.5m/section |
|
apply |
Lime wall, emulsion paint wall, putty powder wall, ceramic tile, metal, wallpaper |
|
Detection function |
Up and down two-way detection of concave convex, with an accuracy of 1mm |
Why choose us
Eco-Friendly & Long-Lasting Results
High quality inks resist UV rays, water, and scratches, with 15-20 years indoor and 3-8 years outdoor color retention. – View More
Precision Meets Versatility
Print on walls, tiles, glass, metal, canvas, and more with 9600 dpi resolution and auto-stitching technology for flawless large-scale designs. – View More
Portable & Cost-Effective
Lightweight (45 kg), foldable design, and ＄0.3/m² ink cost make it ideal for on-site projects and budget-conscious businesses. – View More
Portable & Cost-Effective
Lightweight (45 kg), foldable design, and ＄0.3/m² ink cost make it ideal for on-site projects and budget-conscious businesses. – View More
