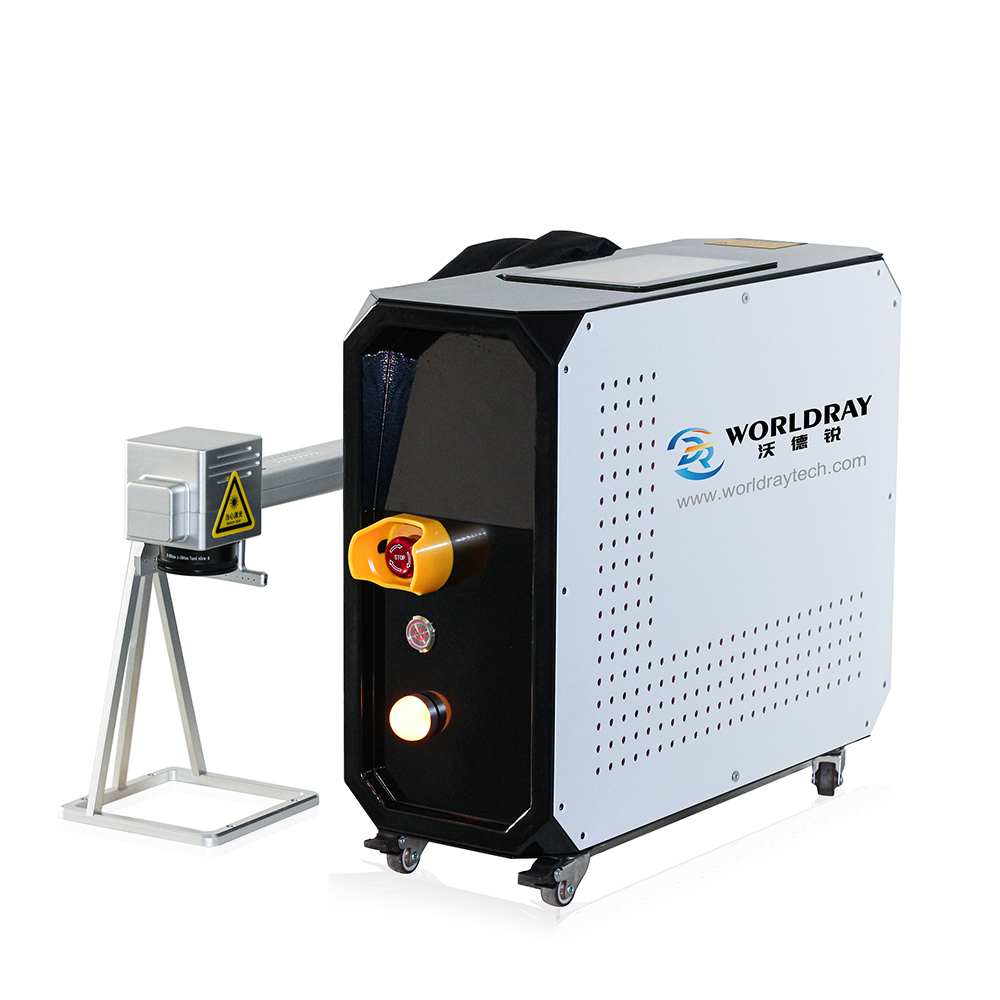

200W/300W 4-in-1 MOPA Fiber Laser Cleaning Machine Portable Pulse Laser Cleaner for Metal Rust, Paint Removal, Engraving & Cutting Industrial-Grade with 9 Modes & Touchscreen
Industrial-grade 4-in-1 pulse laser cleaner! Equipped with 200W/300W fiber MOPA technology, seamlessly switching between cleaning, marking, engraving, and cutting. The intelligent system supports 20 languages and 9 modes for precise adjustment, paired with a high-precision dual swing head to handle metals, molds, artifacts, etc. Metal body + aviation connectors ensure durability and corrosion resistance. Global voltage compatibility and low energy consumption boost efficiency.
Eco-friendly
User-friendly
Global support
PRODUCT DETAILS
4-in-1 Multifunctionality
Seamlessly switch between laser cleaning, marking, engraving, and cutting (up to 1-100mm width), reducing equipment costs and workspace requirements.
High-Power MOPA Fiber Laser
Equipped with a JPT/GZ-brand MOPA laser (200W/300W) and flat-top beam design for uniform energy distribution and stable output (±5% instability).
9 Customizable Cleaning Modes
Choose from patterns like linear, circular, petal, solid fill, and vertical/horizontal scanning to suit varied material and surface needs.
Intuitive 7-Inch Touchscreen Control
Adjust parameters (power, frequency, pulse width) in real-time with a user-friendly interface supporting 20 languages.
Industrial-Grade Durability
Metal chassis with laser-cut, welded, and polished construction ensures resistance to heat, corrosion, impact, and water/oil exposure.
Portable & Ergonomic Design
Lightweight handheld cleaning head (750g) with 6061 aluminum alloy body and anti-slip grip for fatigue-free operation.
Silent Mobility
Four noise-free universal casters (≤60dB) enable smooth, quiet movement across workspaces.
High-Speed Precision Components
Dual imported copper-axis motors (20m/s positioning speed, <5μrad error) and quartz lenses ensure accuracy and longevity.
Safety & Compliance
Includes emergency stop buttons, protective goggles, gloves, and fireproof fiber sleeves for operator safety.
24/7 Reliability
Air-cooled system allows 16-hour continuous operation (-10°C to 60°C) with minimal power consumption (≤1KW).
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Parameter |
Specification |
|
Laser Power |
200W |
|
Max Single Pulse Energy |
5MJ |
|
Laser Type & Brand |
MOPA Fiber Laser (JPT/GZ) |
|
Laser Wavelength |
1080nm |
|
Power Adjustment |
0--100% |
|
Frequency Range |
1-3000KHz |
|
Pulse Width Adjustment |
13--500ns |
|
Laser Stability |
<5% |
|
Laser Divergence Angle |
≤1.5mrad |
|
Cleaning Width |
1-100mm |
|
Cleaning Focal Length |
F=200mm |
|
Cleaning Modes |
9 modes |
|
Continuous Operation |
16hours |
|
Noise Level |
≤60db |
|
Fiber Length |
5M standard |
|
Power Consumption |
≤1KW |
|
Voltage |
AC110/220V±10%50HZ/60HZ |
|
Operating Temperature |
-10℃-40℃ |
|
Cooling Method |
Air |
|
Net Weight |
20KG |
|
Machine Dimensions |
450*170*360mm |
|
Packaging Dimensions |
490 × 210 × 480 mm, 38 kg (Wooden Case) |
Why choose us
Proven Technolog
Our MOPA fiber laser ensures unmatched precision for industrial applications, backed by JPT/GZ’s trusted laser engineering.– View More
Versatility Meets Efficiency
Replace multiple machines with one solution—4 functions in 1 device—optimizing workflow and reducing downtime. – View More
Built for Tough Environments
The IP-rated metal body and dust/water-resistant components thrive in demanding conditions like factories and workshops. – View More
Global User Support
Multilingual interface (20 languages) and worldwide technical service ensure seamless adoption across regions. – View More
