200-300W Cabinet Water-Cooled Laser Cleaning machine
200-300W integrated water-cooled laser cleaning machine is designed with precision and efficiency. Encased within a cabinet design, it seamlessly combines the water-cooling system, a high-performance nano:second fiber laser,intuitive control software, safety features, and a reliable laser output system.
Intelligent control
High-Speed
High-Precision
PRODUCT DETAILS
200-300W Cabinet Water-Cooled Laser Cleaner
200-300W integrated water-cooled laser cleaner is designed with precision and efficiency. Encasedwithin a cabinet design, it seamlessly combines the water-cooling system, a high-performance nanosecond fiber laser, intuitive control software, safety features, and a reliable laser output system. it canalso be optionally equipped with a PLC (Programmable Logic Controller) for digital, unmanned central control
This advanced system is engineered to cater to a wide range of cleaning requirements withinproduction workshops. lt excels at tasks such as mold cleaning, removing rust and paint from structuralcomponents, and eliminating oxidation lavers on aluminum alloys
Achieving an impressive cleaning degree of Sa2.5-3.0, it effectively rids metal surfaces of residual glueoil, coatings, and paint. lt does so while causing minimal substrate damage, with a precision level of lessthan 0.0003mm and without altering the physical or chemical properties of the treated substrate.
Laser Head
Water Cooling：Built-in Water Cooling System for Higher Efficiency in Heat Dissipation；
Indicator Lights, Safety Lock：Laser Emission Indicator Light, Safety Lock to Ensure Process Safety；
Automatic Mode Transfer Plate：Manual/Automatic, Switching Time Less Than 5s；
Fixture Fastener：Easy Installation, Simple Operation；
Positioning Hole：Manual Mode Assists in Locating Holes for Processing Device；
Focusing Device：Equipped with Focusing Device for Automatic Focusing；
Focusing Lens：Optional 160/254/330/420, Suitable for Various Situations；
Laser Interface：Compatible with Isolators, QCS, QBH Commonly Used Laser Connectors in the Market；
Lightweight and Convenient：Laser Head Weight Only 1682g；
Non-contact cleaning, no cleaning media
Laser cleaning is the use of high-energy laser beams to irradiate the surface of the workpiece to be cleaned, and remove contaminants from the surface of the workpiece through selective vaporization, ablation, shock wave, thermoelasticity and other actions. There is no cleaning medium during the cleaning process, which can avoid serious substrate damage (particle cleaning) and media residue (chemical cleaning) in traditional cleaning, and reduce the damage of the substrate to an acceptable range.

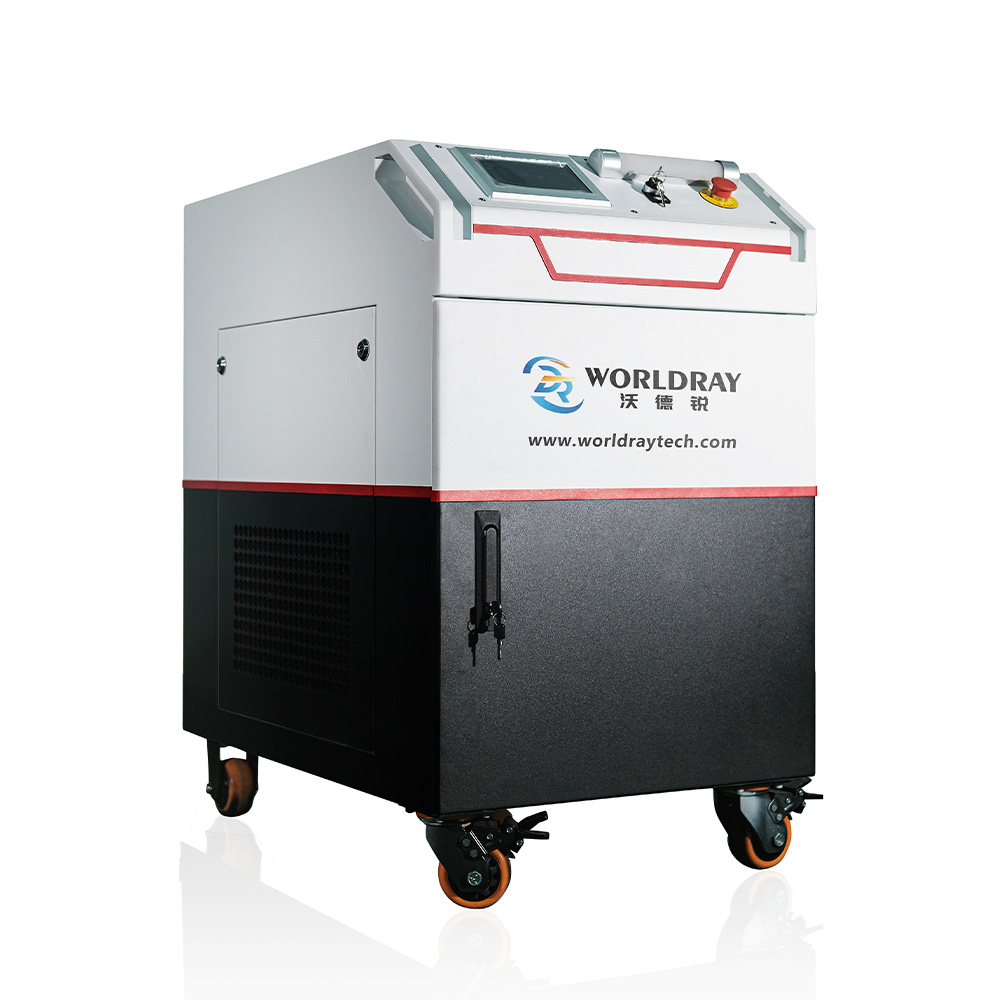

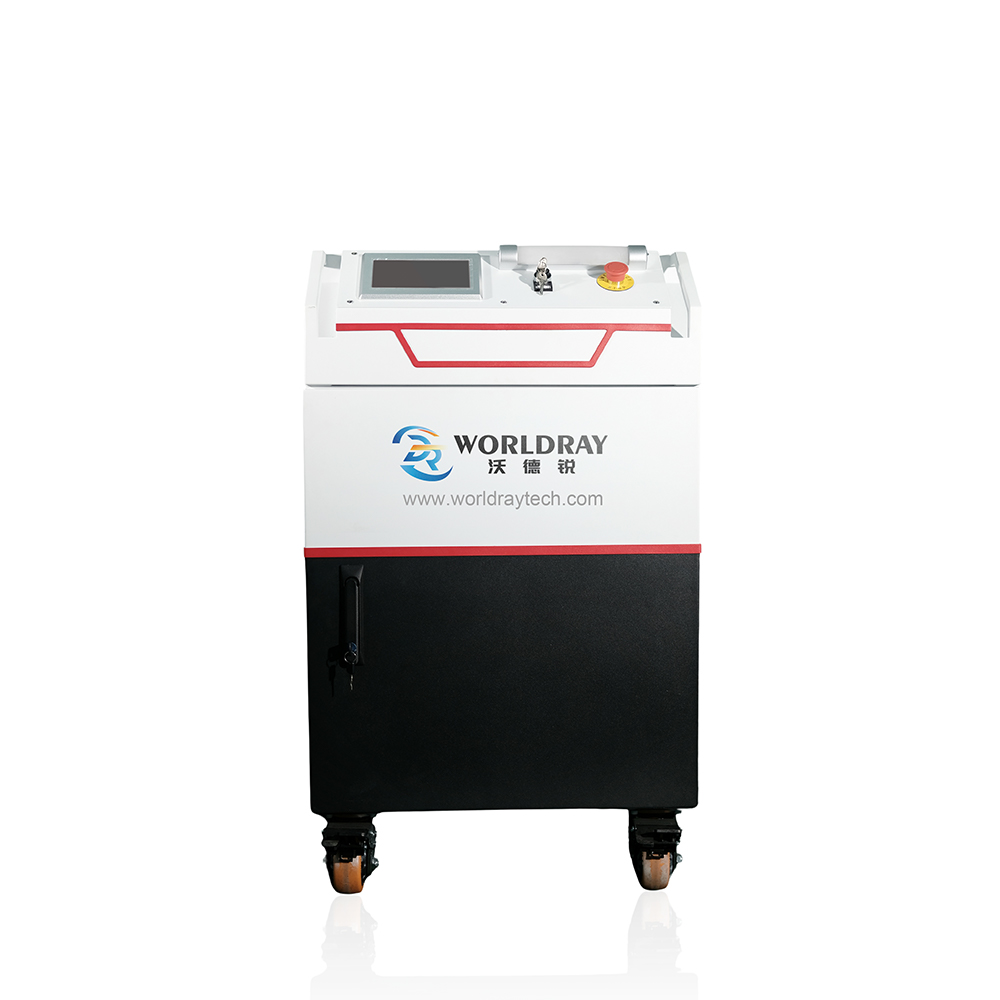

Machine
Safety Indicator Lights：Red for working status, yellow for standby status, green for normal status, more noticeable and secure；
Dual Handles：Convenient for pushing, pulling, and moving, sturdy and durable；
Key Switch：Prevents unauthorized personnel from turning on；
Display Screen：More compact, double-layer screen protection film, surface is easy to disassemble, more dust-proof, cleaner, scratch-resistant；
Emergency Stop Switch：Siemens Safety Emergency Stop Switch；
Filter and Air Inlet：Portable detachable dust-proof net design, better air intake, dust-proof and dirt-resistant, easy to disassemble and maintain；
Silent Universal Wheel：Unique widened and miniaturized design, compact and beautiful, more stable, firm, and convenient to move；
Size: length 1056mm, width 642mm height 1089mm.
Green and environmentally friendly
The soot generated by laser cleaning can be collected by the dust collector and is easy to dispose of, with no secondary products being generated, minimizing the impact on the environment.
Diversified operation methods
Laser cleaning can be divided into handheld and automatic cleaning. Hand-held cleaning is carried by the operator with a mobile laser cleaning equipment and a hand-held laser head for cleaning. Automatic cleaning integrates the laser cleaning system with manipulators, crawling robots, AGVs and other equipment to achieve precise and efficient cleaning.
Cleans many types of contaminants
Whether the substance to be removed is organic, metallic, oxide or inorganic non-metal, laser cleaning can remove it. This is an advantage that no other traditional method has, making it widely used in the removal of surface dirt, paint, rust, film layers, etc.
Low operating costs
Laser cleaning machine does not use consumables, and the operating cost is advantageous compared to traditional methods.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Laser Type |
Nanosecond Pulsed Fiber Laser |
|
Maximum Output Power |
200W/300W |
|
Wavelength |
1064±5nm |
|
Power Adjustment Range |
10-100% |
|
Output Power Stability |
≥95% |
|
Pulse Frequency |
10-50/20-50kHz |
|
Pulse Width |
130-140ns |
|
Max Single Pulse Energy |
10/12.5/15mJ |
|
Fiber Length |
5/10 Meters |
|
Laser Safety Class |
Class 4 |
|
Cooling Method |
Water Cooling |
|
SIZE(MM) |
640*1050*1080MM |
|
Weight(kg) |
169/45KGS |
