100W-300W Air-cooled Pulse Trolley Type Laser Cleaning Machine Mini Laser Cleaner for Metal Rust Removal

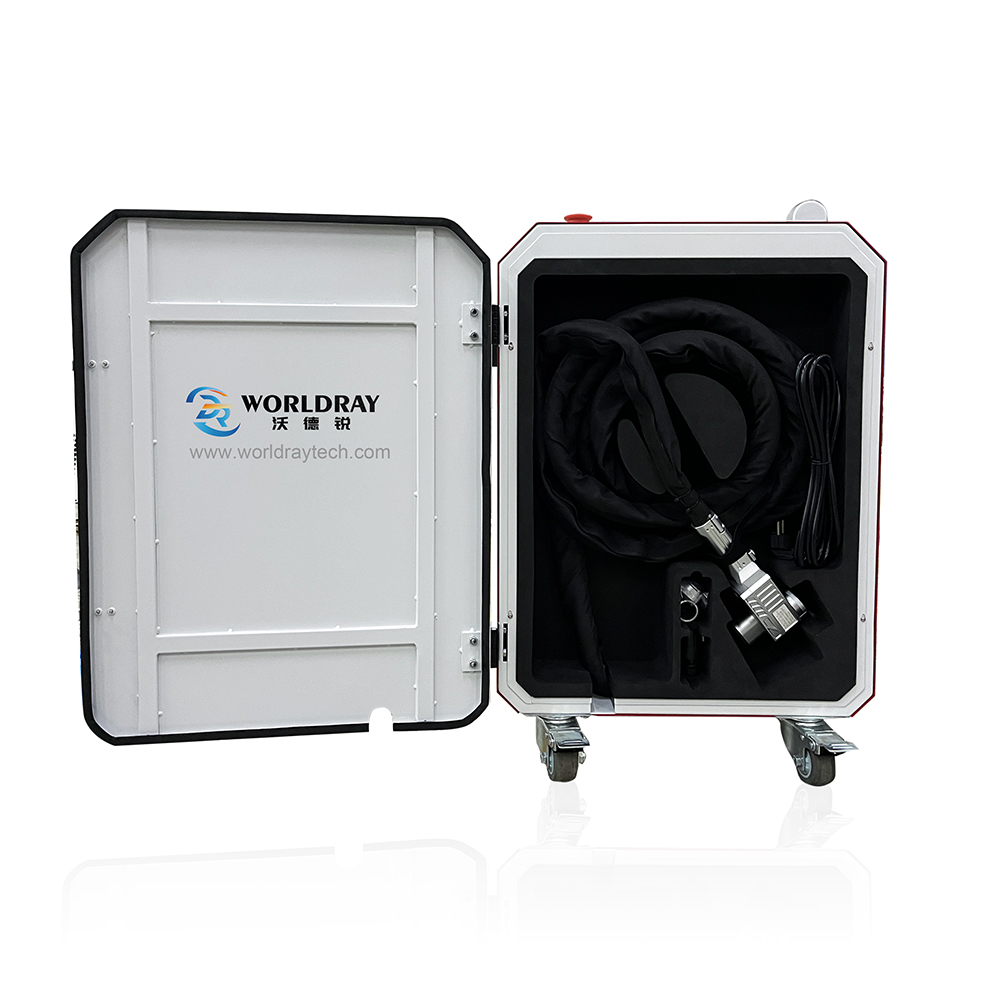

100W/200W/300W handheld nanosecond pulse fiber laser cleaning system. The equipment adopts an aviation box design, which takes into account both protection and portability. Turn on the power, open the front box door to take out the laser head, and select the appropriate cleaning mode to achieve cleaning. The laser head is small and light, weighing less than 0.5kg, and can be widely used in various handheld cleaning scenarios. It can also be linked with manipulators and other equipment through a quick switching device. The laser beam of this equipment has high quality and can easily meet various high-precision cleaning needs.
Intelligent control
High-Speed
High-Precision
PRODUCT DETAILS

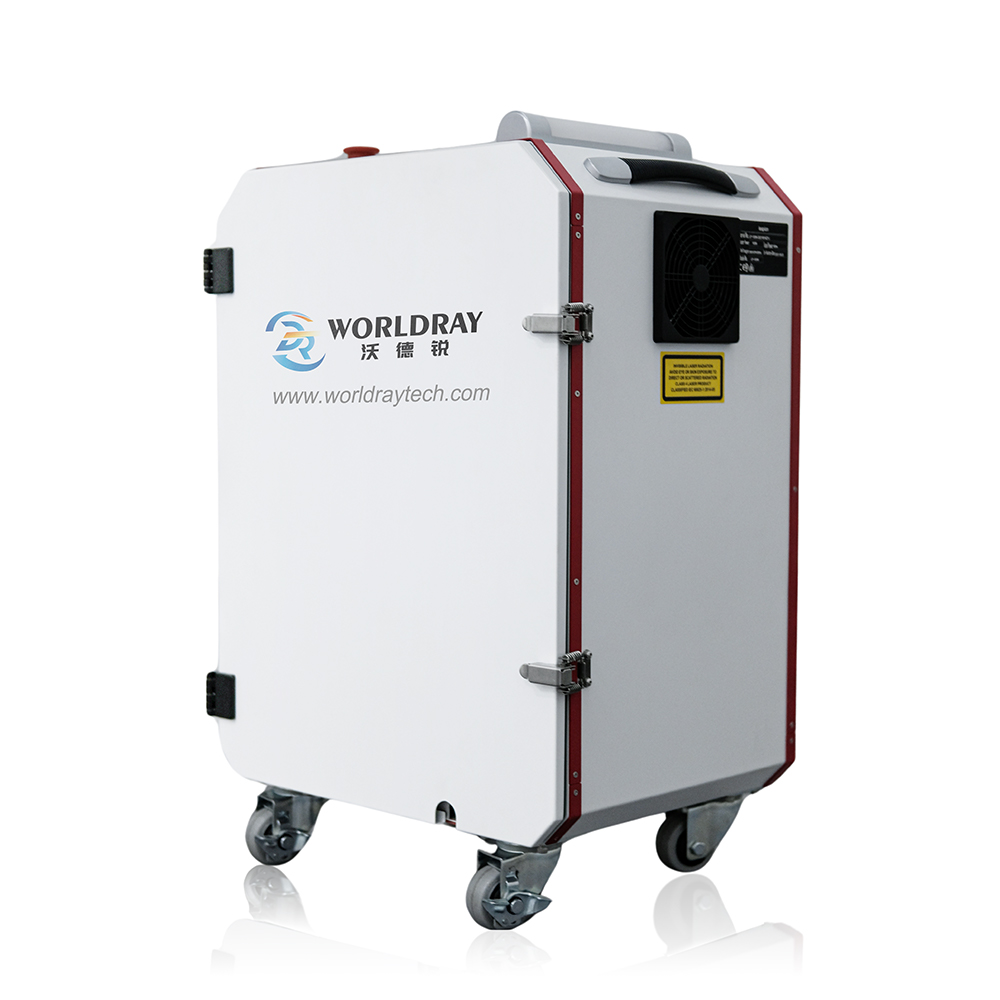

Portable Aviation-Case Design
Compact dimensions (95×68×62cm) and built-in trolley handles/wheels enable easy transport in car trunks or elevators—perfect for on-site or mobile operations.
100-300W Adjustable Power
Choose from 100W, 200W, or 300W models to tackle light to heavy-duty cleaning tasks (rust, paint, oil, oxides) with 1.1-1.6mJ pulse energy.
Air-Cooled Stability
No bulky water-cooling systems—integrated air cooling ensures ≤5% power fluctuation and reliable performance in extreme conditions.
Triple Safety Protection
Compliant with Class 4 laser safety (IEC 60825), featuring emergency stop buttons, dual-lock triggers, and safety interlocks for operator protection.
High-Speed Precision Cleaning
Achieve nanoscale accuracy with adjustable pulse frequencies (1-4000kHz) and focal lengths (F160/F254/F330), ideal for delicate parts or large surfaces.
Zero Consumables & Low Maintenance
Eliminate ongoing costs—no chemicals, abrasives, or replacement parts required (except protective lenses).
Dust/Water-Resistant Build
IP54-rated enclosure and removable dust filters ensure durability in smoky, humid, or dusty environments.
User-Friendly Interface
Dual-layer touchscreen with protective film and intuitive controls simplifies operation for single-user workflows.
Versatile Integration
Compatible with robotic arms for automated cleaning lines or fixed installations in factories.
Rugged Packaging
Shockproof foam, moisture-resistant wood crates, and silent EVA wheels guarantee safe global shipping and on-site mobility.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Laser Type |
Nanosecond Pulsed Fiber Laser |
|
Output Power |
100W/200W/300W |
|
Central Wavelength |
1064±5nm |
|
Beam Quality |
≤1.8M² |
|
Power Adjustment Range |
10-100% |
|
Output Power Stability |
≥95% |
|
Laser Pulse Frequency |
1-4000kHz |
|
Pulse Width |
10-350ns |
|
Max Single Pulse Energy |
1.5mJ |
|
Fiber Length |
3 / 5 meters(Optional) |
|
Laser Safety Class |
Class 4 (IEC 60825 Standard) |
|
Cooling Mode |
Air Cooling |
|
Size |
430*530*780MM |
|
Weight |
67KGS |
Why choose us
Unmatched Mobility & Flexibility
The trolley-style laser cleaning machine moves with you—its aviation-case design and silent wheels enable seamless transport across workshops, shipyards, or tight spaces, ensuring agility in dynamic environments.– View More
Longevity & Cost Efficiency
Built for endurance, this system delivers a 50,000-80,000-hour operational lifespan with zero consumables, offering a one-time investment that eliminates recurring costs and boosts ROI.– View More
Plug-and-Play Precision
Achieve nanoscale cleaning accuracy with instant operation—no setup required. Remove rust, paint, or oxide layers without damaging substrates, ideal for welds, molds, and delicate components. – View More
Global Safety Compliance
Equipped with triple safety protections (emergency stops, dual-key activation, IEC 60825 Class 4 compliance), it ensures full adherence to international labor safety standards, even in high-risk environments. – View More
