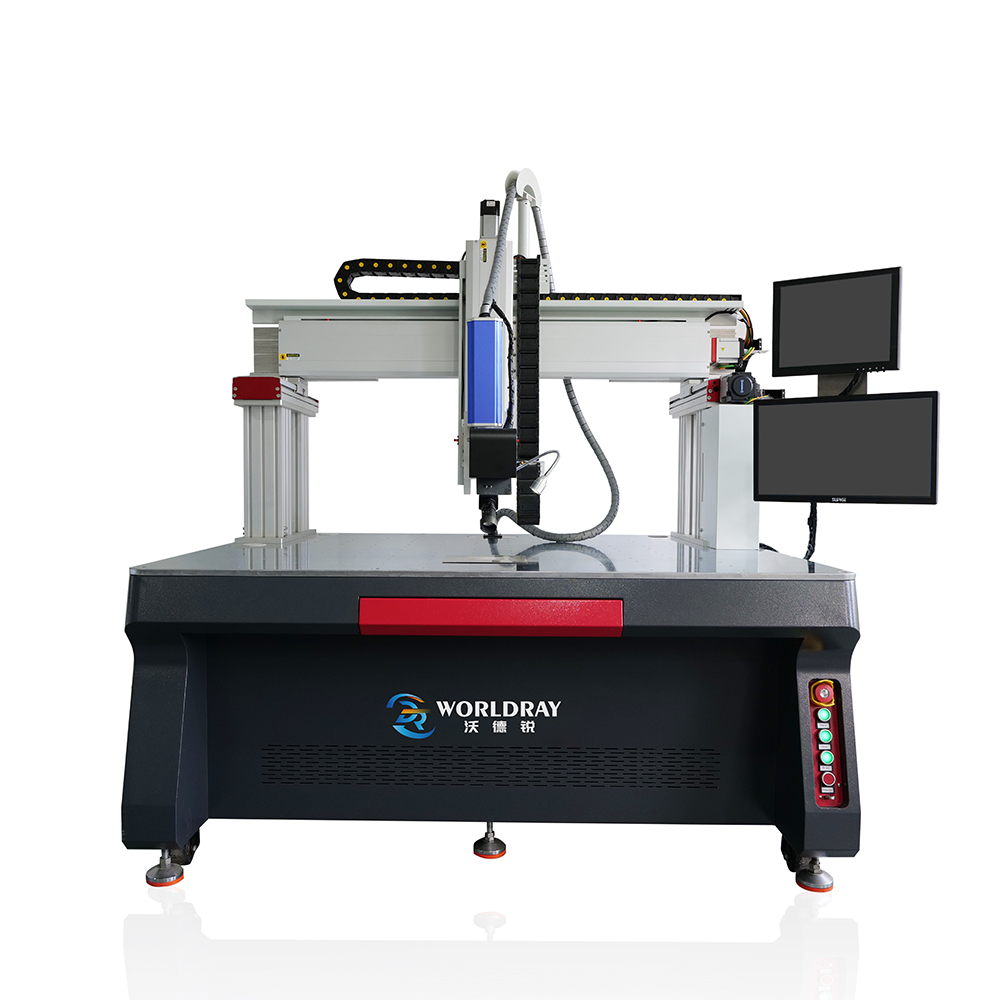

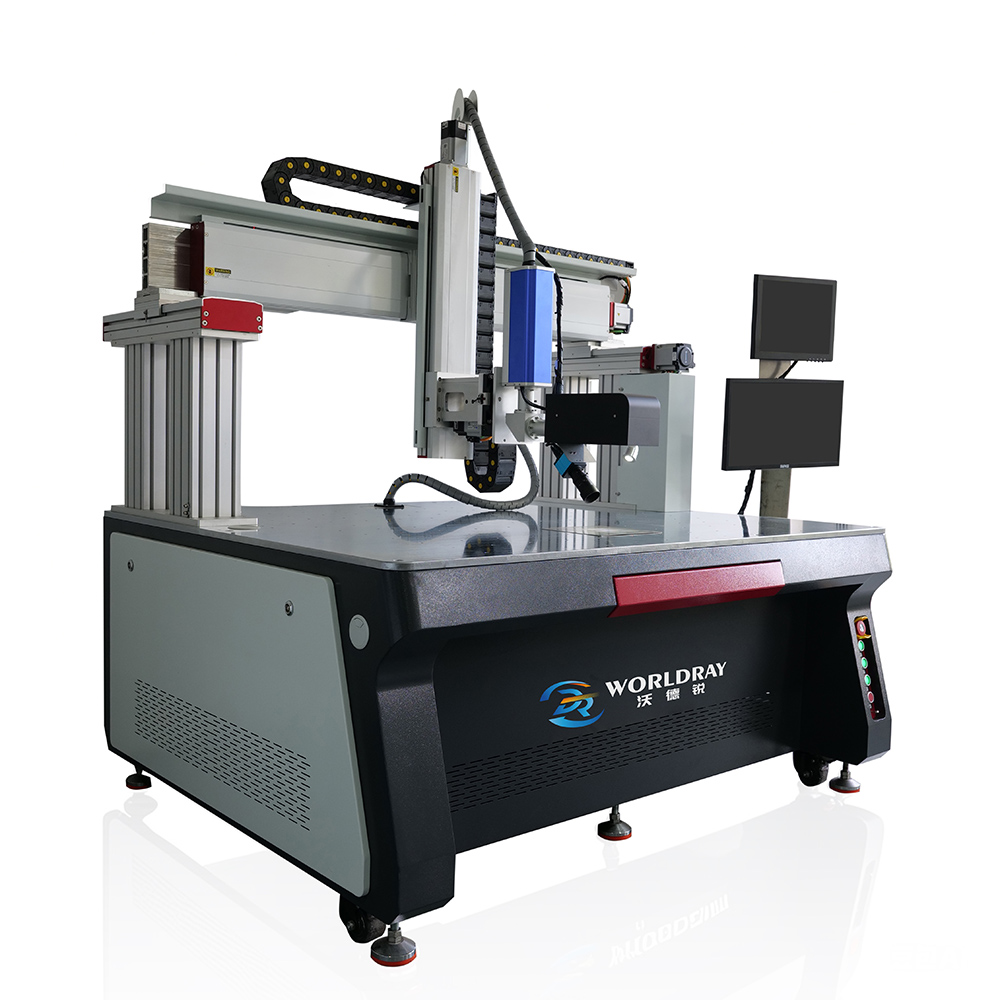

100W 200W 5-Axis Fiber Laser Marking Machine Large-Format High-Precision for Metal & Non-Metal Materials
This fiber laser marking machine represents the latest advancements in industrial marking technology, offering unparalleled precision, versatility, and efficiency for complex 3D surface applications. Designed for high-volume production environments, this machine integrates advanced mechanics, intelligent control systems, and user-friendly software to deliver consistent results across a wide range of materials and geometries.
Intelligent control
High-Speed
High-Precision
PRODUCT DETAILS
5-Axis Motion Control
(X/Y1/Y2/Z/C): Enables complex 3D and freeform surface marking with high precision.
100W/200W Fiber Laser
Delivers stable output, excellent beam quality (M² < 2), and adjustable pulse frequency (1–4000 kHz).
3D Dynamic Focusing System
Supports deep engraving (0.01–0.2 mm) and maintains consistent focus on curved surfaces.
High-Speed Scanning
Galvanometer: Achieves speeds up to 7000 mm/s with ±0.001 mm repeat accuracy.
Wide Material Compatibility
Suitable for metals and select non-metals with minimal line width of 0.03 mm.
Interchangeable Focal Lengths (100/254 mm)
Quick-release system for flexible application scenarios.
Integrated High-Resolution Camera (MV-CS200-10GM)
Integrated High-Resolution Camera (MV-CS200-10GM): Ensures precise workpiece alignment and setup.
Advanced Software (EZCAD)
Supports 2D/3D data formats (DXF, STL, AI), QR codes, batch processing, and automatic Z-axis adjustment.
Robust Safety Features
IP54 protection and Class 4 laser safety compliance.
Heavy-Duty Worktable
Supports up to 500 kg load capacity for industrial applications.
Parameter of Equipments
|
Parameter |
Specification |
|---|---|
|
Laser-type |
Fiber Laser |
|
Laser wavelength |
1064nm |
|
Maximum output power |
100/200W |
|
Cooling Method |
Air-cooled |
|
Marking Area |
110×110 mm(optional) |
|
Focal Length |
160 mm |
|
Resolution |
0.001 mm |
|
Engraving Depth |
0.01–0.2 mm (adjustable) |
|
Repeat Accuracy |
≤0.001 mm |
|
Minimum Line Width |
0.03 mm (material-dependent) |
|
Minimum Character Size |
0.2 mm |
|
Marking Speed |
0–7000 mm/s |
|
Supported File Formats |
BMP, JPG, AI, DXF, PLT, etc. |
Why choose us
Unmatched Precision & 3D Capability
Equipped with a 5-axis motion system and 3D dynamic focus, our machine achieves micron-level accuracy (≤0.001 mm) on complex freeform surfaces, ideal for aerospace, medical devices, and high-end jewelry engraving. – View More
Industry-Leading Speed & Efficiency
The 100W MOPA laser and 7000 mm/s scanning galvanometer deliver rapid, high-quality marks, reducing cycle times by 40% for mass production while maintaining consistency. – View More
Versatile & Future-Proof Design
Interchangeable lenses (100/254 mm), dynamic Z-axis control, and compatibility with metals/non-metals (0.03 mm line width) adapt seamlessly to evolving needs—from 2D barcodes to 3D Relief carving. – View More
Reliability Meets Simplicity
Built with IP54-rated industrial components, a 500 kg heavy-duty worktable, and intuitive EZCAD software, it ensures hassle-free operation, minimal downtime, and long-term ROI in demanding environments. – View More
